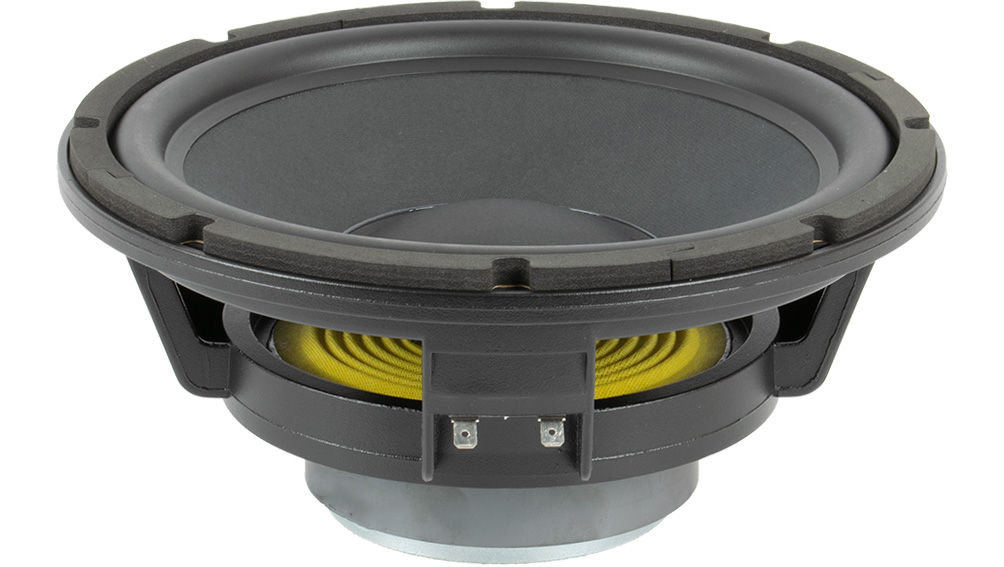

difuzor Beyma 10BR60V2

Acasa/Difuzoare/10 inch/difuzor Beyma 10BR60V2

difuzor Beyma 10BR60V2

In Stock

63,95  + TVA



putere:
100W AES,
sensibilitate:
90.6 dB/1W/1M,
domeniu de frecvenţă:
30-5000 Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
31 Hz,
preţ kit reparaţii:
—————–



TECHNICAL SPECIFICATIONS



Nominal diameter 250 mm 10 in
Nominal impedance 8 Ohm
Minimum impedance 8.3 Ohm
Power capacity 100 W AES
Program power 200 W
Sensitivity 90.6 dB 1 W @ 1m @ 2Π
Frequency range 30-5000 Hz
Recommended enclosure volume 30 / 100 l 1.06 / 3.53 ft.³
Voice coil diameter 50.8 mm 2 in
BL factor 10.6 N / A
Moving mass 0.048 kg
Winding length 16 mm
Air gap height 7 mm
Xdamage pp 31 mm

THIELE SMALL PARAMETERS



Fs 31 Hz
Re 6.5 ohm
Qms 3.3
Qes 0.55
Qts 0.47
Vas 108 l
Cms 536 µm / N
Rms 2.9 kg / s
Efficiency % 0.57
Sd 0.038 m²
Xmax 6.5 mm
Vd 240 cm³
Le @1 kHz 1.5 mH

CONSTRUCTIVE DETAILS



Net weight 2.9 kg 6.39 lb
Total weight 3.3 kg 7.2 lb
Magnet Ferrite
