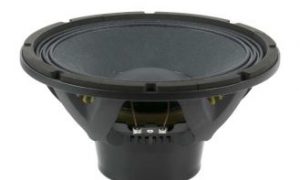

difuzor Beyma 10CMV2

Acasa/Difuzoare/10 inch/difuzor Beyma 10CMV2
Nou

difuzor Beyma 10CMV2

In Stock

43,95  + TVA



putere:
250W AES,
sensibilitate:
95 dB/1W/1M,
domeniu de frecvenţă:
60-5000Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
52 Hz,
preţ kit reparaţii:
—————–

10CMV2

TECHNICAL SPECIFICATIONS



Nominal diameter

250 mm 10 in

Nominal impedance

8 Ohm

Minimum impedance

7.2 ohm

Power capacity

250 W AES

Program power

500 W

Sensitivity

95 dB 1 W/1 m @ ZN

Frequency range

60-5000 Hz

Recommended enclosure volume

30 l

Voice coil diameter

38.1 mm 1.5 in

BL factor

13.4 N/A

Moving mass

0.042 kg

Winding length

16 mm

Air gap height

7 mm

Xdamage pp

30 mm

THIELE SMALL PARAMETERS



Fs

52 Hz

Re

5.9 ohm

Qms

3.8

Qes

0.47

Qts

0.42

Vas

44 l

Cms

216 µm / N

Rms

3.7 kg / s

Efficiency %

1.3

Sd

0.038 m²

Xmax

6.5 mm

Vd

247 cm³

Le @1 kHz

0.8 mH

CONSTRUCTIVE DETAILS



Depth

115 mm 4.52 in

Net weight

3.1 kg 6.82 lb

Total weight

3.5 kg 7.77 lb

Magnet

Ferrite
