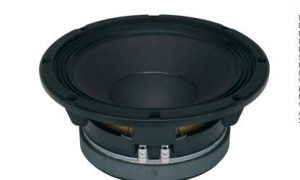

difuzor Beyma 10LW30 N

Acasa/Difuzoare/10 inch/difuzor Beyma 10LW30 N

difuzor Beyma 10LW30 N

In Stock

137,90  + TVA

putere : 450 @ 900 W
sensibilitate : 96 dB @ 1w @ 1m
domeniu de frecvenţă : 35 – 3500 Hz
impedanţă : 8 ohmi
preţ kit reparaţii : 40,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 250 mm 10 in
Nominal impedance 8 Ohm
Minimum impedance 6.6 ohm
Power capacity 450 W AES
Program power 900 W
Sensitivity 95 dB 1 W @ 1 m
Frequency range 55-4000 Hz
Recommended enclosure volume
Voice coil diameter 77 mm 3 in
BL factor 19.3 N/A
Moving mass 0.052 kg
Winding length 17.5 mm
Air gap height 8 mm
Xdamage pp 30 mm

THIELE SMALL PARAMETERS



Fs 55 Hz
Re 6.2 ohm
Qms 8.5
Qes 0.3
Qts 0.29
Vas 28 l
Cms 160 µm / N
Rms 2.1 kg / s
Efficiency % 1.5
Sd 0.0350 m²
Xmax 7 mm
Vd 245 cm³
Le @1 kHz 1mH

CONSTRUCTIVE DETAILS



Net weight 3.75 kg 8.25 lb
Total weight 4.25 kg 9.35 lb
Magnet Neodymium
