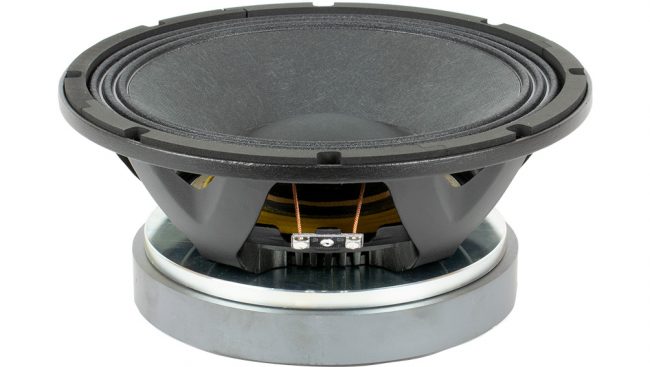

difuzor Beyma 10MCB700

Acasa/Difuzoare/10 inch/difuzor Beyma 10MCB700
Nou

difuzor Beyma 10MCB700

In Stock

154,95  + TVA

putere:
700 W AES
sensibilitate:
96 dB/1W/1M
domeniu de frecvenţă:
80-4000 Hz
impedanţă:
8 Ohm
frecvenţă rezonanţă:
75 Hz
preţ kit reparaţii:
Descărcări:10MCB700
Beyma 10MCB700

TECHNICAL SPECIFICATIONS



Nominal diameter 250 mm 10 in
Nominal impedance 8 Ohm
Minimum impedance 7.1 Ohm
Power capacity 700 W AES
Program power 200 W
Sensitivity 96 dB 1 W @ 1m @ 2Π
Frequency range 80-4000 Hz
Recommended enclosure volume 14 I
Voice coil diameter 76.2 mm 3 in
BL factor 20.1 N / A
Moving mass 0.055 kg
Winding length 18 mm
Air gap height 9.5 mm
Xdamage pp 45 mm

THIELE SMALL PARAMETERS



Fs 75 Hz
Re 5.3 ohm
Qms 4.9
Qes 0.35
Qts 0.33
Vas 13.2 l
Cms 76 µm / N
Rms 5.5 kg / s
Efficiency % 1.7
Sd 0.035 m²
Xmax 7 mm
Vd 245 cm³
Le @1 kHz 0.9 mH

CONSTRUCTIVE DETAILS

Depth                                                       129 mm 5.1 in

Net weight 7.6 kg 16.7 lb
Total weight 8.1 kg 17.8 lb
Magnet Ferrite
