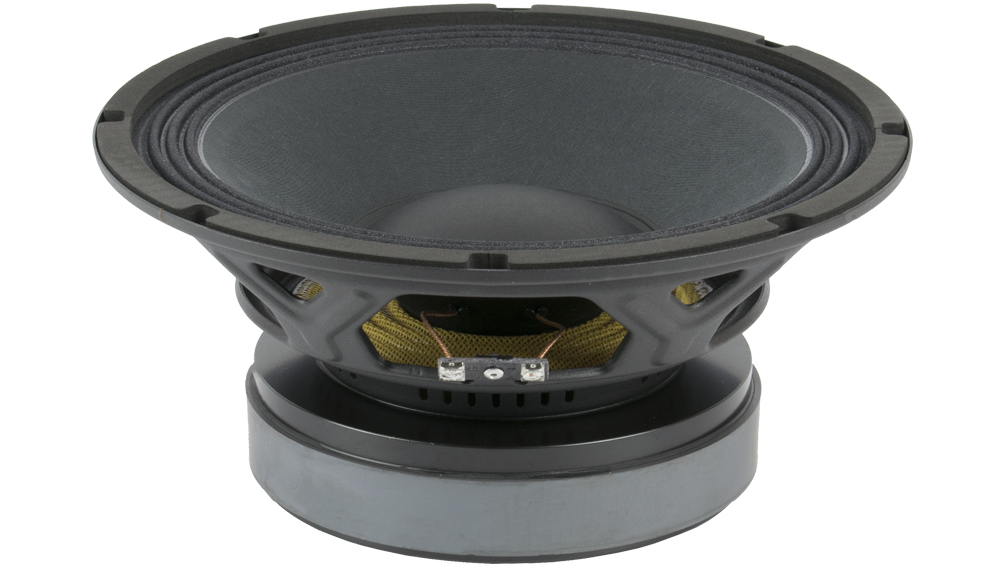

difuzor Beyma 10MCS500

Acasa/Difuzoare/10 inch/difuzor Beyma 10MCS500

difuzor Beyma 10MCS500

In Stock

90,90  + TVA

putere : 500 / 1000W AES
sensibilitate : 96db / 1w /1m
domeniu de frecvenţă : 70 – 5000 hz
impedanţă : 8 ohmi
frecvenţă rezonanţă : 70 hz



TECHNICAL SPECIFICATIONS



Nominal diameter 250 mm 10 in
Nominal impedance 8 Ohm
Minimum impedance 7.2 ohm
Power capacity 500 W AES
Program power 1000 W
Sensitivity 96 dB @ 1 W @ ZN
Frequency range 70-5000 Hz
Voice coil diameter 63.5 mm 2.5 in
BL factor 17.6 N/A
Moving mass 0.047 kg
Winding length 19.5 mm
Air gap height 9.5 mm
Xdamage pp 40 mm

THIELE SMALL PARAMETERS



Fs 70 Hz
Re 5.7 ohm
Qms 10.1
Qes 0.38
Qts 0.37
Vas 18.8 l
Cms 109 µm / N
Rms 2.05 kg/s
Efficiency % 1.65
Sd 0.035 m²
Xmax 8 mm
Vd 280 cm³
Le @1 kHz 1.1 mH

CONSTRUCTIVE DETAILS



Depth 125 mm 4.9 in
Net weight 5.7 kg 12.5 lb
Total weight 6.1 kg 13.42 lb
Magnet Ferrite
