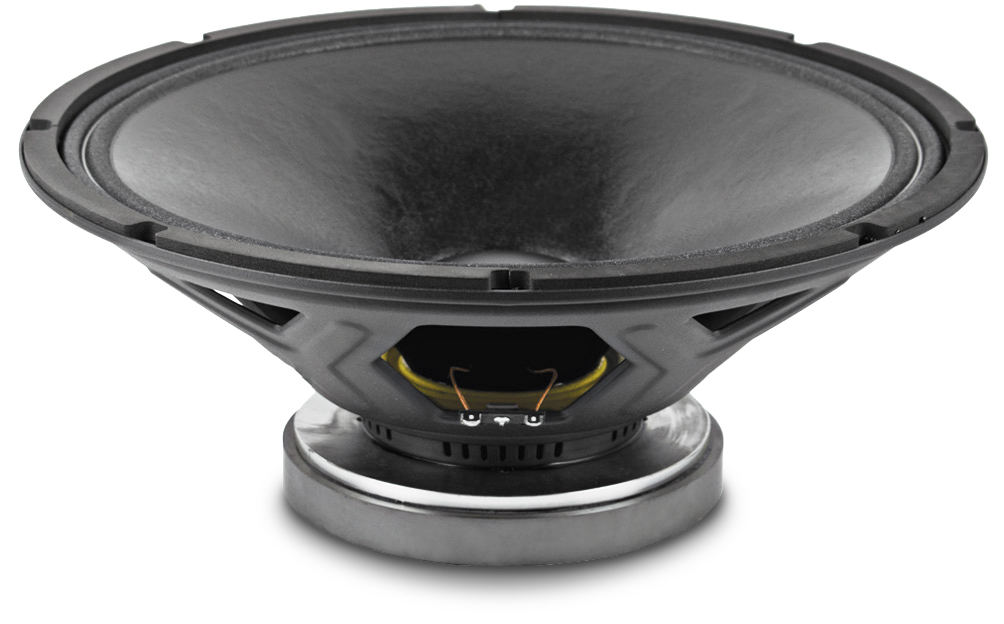

difuzor Beyma 15CM V2

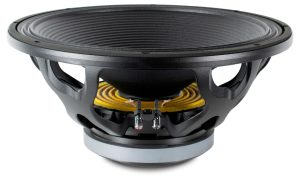

difuzor Beyma 18LEX1200Fe
<span class="woocommerce-Price-amount amount"><bdi>263,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor Beyma 14MLEX1000Nd
<span class="woocommerce-Price-amount amount"><bdi>324,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
100,95 € + TVA
putere: |
350 W AES |
sensibilitate: |
97 dB/1W/1M |
domeniu de frecvenţă: |
50-4000 Hz |
impedanţă: |
8 Ohm |
frecvenţă rezonanţă: |
49 Hz |
preţ kit reparaţii: |
Descărcări: 15CMV2
Category: 15 inch
TECHNICAL SPECIFICATIONS
| Nominal diameter | 380 mm 15 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 7.5 ohm |
| Power capacity | 350 W AES |
| Program power | 700 W |
| Sensitivity | 97 dB 1 W @ 1 m @ ZN |
| Frequency range | 50-4000 Hz |
| Recommended enclosure volume | 75 l |
| Voice coil diameter | 76.2 mm 3 in |
| BL factor | 18.8 N / A |
| Moving mass | 0.106 kg |
| Winding length | 17.5 mm |
| Air gap height | 7 mm |
| Xdamage pp | 35 mm |
THIELE SMALL PARAMETERS
| Fs | 49 Hz |
| Re | 6 Ohm |
| Qms | 4.1 |
| Qes | 0.55 |
| Qts | 0.49 |
| Vas | 104 l |
| Cms | 95 µm / N |
| Rms | 8.1 kg/s |
| Efficiency % | 2.3 |
| Sd | 0.088 m² |
| Xmax | 7 mm |
| Vd | 616 cm³ |
| Le @1 kHz | 1.2 mH |
CONSTRUCTIVE DETAILS
Depth 165 mm 6.5 in
Net weight 6 kg 13.3 lb
Total weight 7 kg 15.4 lb
Magnet Ferrite
