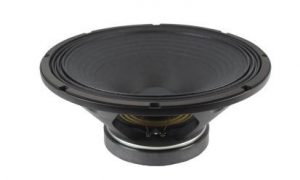

difuzor Beyma 15LW30

Acasa/Difuzoare/15 inch/difuzor Beyma 15LW30

difuzor Beyma 15LW30

In Stock

171,90  + TVA

putere :
450 @ 900 W
sensibilitate :
99 dB @ 1w @ 1m
domeniu de frecvenţă :
35 – 4000 Hz
impedanţă :
8 ohmi
preţ kit reparaţii :
76,90 euro +tva



TECHNICAL SPECIFICATIONS



Nominal diameter

380 mm 15 in

Nominal impedance

8 Ohm

Minimum impedance

7 ohm

Power capacity

500 W AES

Program power

1000 W

Sensitivity

98 dB 1 W @ 1 m @ ZN

Frequency range

35-4000 Hz

Recommended enclosure volume

Voice coil diameter

77 mm 3 in

BL factor

18.9 N / A

Moving mass

0.096

Winding length

17.5 mm

Air gap height

8 mm

Xdamage pp

30 mm

THIELE SMALL PARAMETERS



Fs

34 Hz

Re

6.2 ohm

Qms

4.5

Qes

0.35

Qts

0.33

Vas

251 l

Cms

228 µm / N

Rms

4.5 kg / s

Efficiency %

2.7

Sd

0.088 m²

Xmax

7 mm

Vd

616 cm³

Le @1 kHz

1.1 mH

CONSTRUCTIVE DETAILS



Net weight

4.5 kg 9.9 lb

Total weight

5.5 kg 12.1 lb

Magnet

Neodymium
