difuzor Beyma 18LEX1200Fe

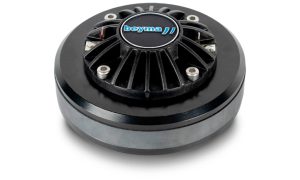

driver Beyma CD151Fe/Pk
<span class="woocommerce-Price-amount amount"><bdi>68,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor Beyma 15CM V2
<span class="woocommerce-Price-amount amount"><bdi>100,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
263,95 € + TVA
putere: |
1200 W AES |
sensibilitate: |
97 dB/1W/1M |
domeniu de frecvenţă: |
40-1000 Hz |
impedanţă: |
8 Ohm |
frecvenţă rezonanţă: |
32 Hz |
preţ kit reparaţii: |
111,95 EURO+TVA |
Descărcări: 18LEX1200Fe
TECHNICAL SPECIFICATIONS
Nominal diameter |
460 mm 18 in |
Nominal impedance |
8 Ohm |
Minimum impedance |
5.8 Ohm |
Power capacity |
1200 W AES |
Program power |
2400 W |
Sensitivity |
97 dB 1 W/1 m @ ZN |
Frequency range |
40-1000 Hz |
Voice coil diameter |
101.6 mm 4 in |
BL factor |
23.2 N/A |
Moving mass |
0.200 kg |
Winding length |
27 mm |
Air gap height |
12 mm |
Xdamage pp |
48 mm |
THIELE SMALL PARAMETERS
Fs |
32 Hz |
Re |
5.3 ohm |
Qms |
12.2 |
Qes |
0.39 |
Qts |
0.38 |
Vas |
277 l |
Cms |
0.124 mm / N |
Rms |
3.2 kg / s |
Efficiency % |
2.2 |
Sd |
1255 cm² |
Xmax |
11 mm |
Vd |
1.3 l |
Le @1 kHz |
1.21 mH |
CONSTRUCTIVE DETAILS
Depth |
225 mm 8.85 in |
Net weight |
14 kg 30.8 lb |
Total weight |
15.2 Kg |
Magnet |
Ferrite |
