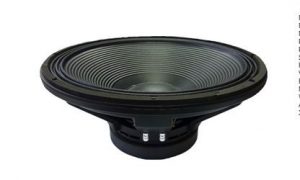

difuzor Beyma 18P1200Nd

Acasa/Difuzoare/18 inch/difuzor Beyma 18P1200Nd

difuzor Beyma 18P1200Nd

In Stock

319,90  + TVA

putere :
1200W AES
sensibilitate :
98dB @ 2.83V @ 1m
domeniu de frecvenţă :
25 – 2000Hz
impedanţă :
8 ohm
frecvenţă rezonanţă :
37Hz
preţ kit reparaţii :
95,90 Euro + TVA

TECHNICAL SPECIFICATIONS



Nominal diameter

460 mm 18 in

Nominal impedance

8 Ohm

Minimum impedance

6 ohm

Power capacity

1200 W AES

Program power

2400 W

Sensitivity

98 dB 1 W @ 1 m

Frequency range

25-2000 Hz

Recommended enclosure volume

80 / 200 l 2.8 / 7 ft³

Voice coil diameter

100 mm 4 in

BL factor

26.3 N / A

Moving mass

0.199 kg

Winding length

25 mm

Air gap height

14 mm

Xdamage pp

52 mm

THIELE SMALL PARAMETERS



Fs

37 Hz

Re

5.3 ohm

Qms

10.39

Qes

0.35

Qts

0.34

Vas

198 l

Cms

93 µm / N

Rms

4.5 kg / s

Efficiency %

2.7

Sd

0.1225 m²

Xmax

9.5 mm

Vd

1164 cm³

Le @1 kHz

2.3 mH

CONSTRUCTIVE DETAILS



Net weight

8.5 kg 18.7 lb

Total weight

10 kg 22 lb

Magnet

Neodymium
