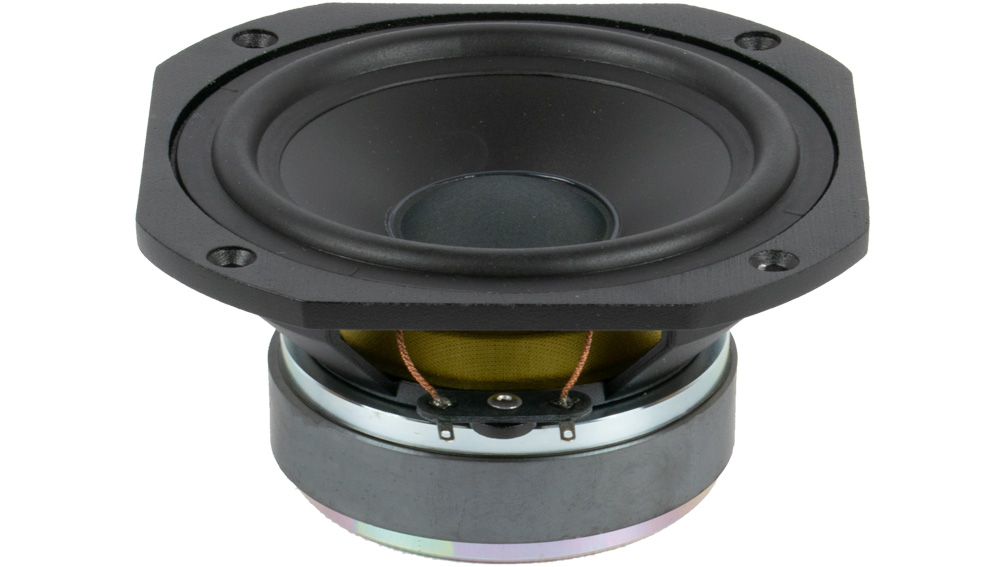

difuzor Beyma 5MP60/N

Acasa/Difuzoare/5 inch/difuzor Beyma 5MP60/N
beyma-speakers-product-picture-low-mid-frequency-5MP60N

difuzor Beyma 5MP60/N

In Stock

47,95  + TVA

putere: 50W RMS,
sensibilitate: 88 dB/1W/1M,
domeniu de frecvenţă: 65-12000 Hz,
impedanţă: 8 ohm,
frecvenţă rezonanţă: 63 Hz,
preţ kit reparaţii: ———-





TECHNICAL SPECIFICATIONS



Nominal diameter 125 mm 5 in
Nominal impedance 8 Ohm
Minimum impedance 5.5 ohm
Power capacity 50 W RMS
Program power 100 W
Sensitivity 88 dB 1 W/1 m @ ZN
Frequency range 65-12000 Hz
Recommended enclosure volume 8 L
Voice coil diameter 25,4 mm 1 in
BL factor 6.4 N / A
Moving mass 0.011 kg
Winding length 14 mm
Air gap height 6 mm
Xdamage pp 20 mm

THIELE SMALL PARAMETERS



Fs 63 Hz
Re 5.3 ohm
Qms 2.3
Qes 0.58
Qts 0.46
Vas 5.8 l
Cms 564 µm / N
Rms 2 kg/s
Efficiency % 0.25
Sd 0.0085 m²
Xmax 5.5 mm
Vd 46 cm³
Le @1 kHz 0.2 mH

CONSTRUCTIVE DETAILS



Net weight 1.2 kg 2.64 lb
Total weight 1.3 kg 2.86 lb
Magnet Ferrite
