difuzor Beyma 6CM V2

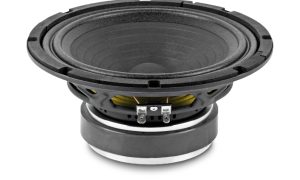

difuzor Beyma 8CM V2
<span class="woocommerce-Price-amount amount"><bdi>45,00 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA

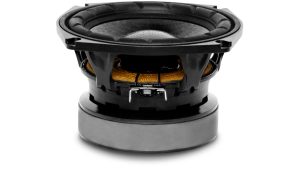

difuzor Beyma 6NMFW
<span class="woocommerce-Price-amount amount"><bdi>191,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
41,95 € + TVA
putere: |
220 W AES |
sensibilitate: |
94 dB/1W/1M |
domeniu de frecvenţă: |
95-8000 Hz |
impedanţă: |
8 Ohm |
frecvenţă rezonanţă: |
90 Hz |
preţ kit reparaţii: |
Descărcări:6CMV2
Category: 6 inch
TECHNICAL SPECIFICATIONS
| Nominal diameter | 165 mm 6.5 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 6.7 Ohm |
| Power capacity | 220 W AES |
| Program power | 440 W |
| Sensitivity | 94 dB 1 W @ 1 m @ ZN |
| Frequency range | 95-8000 Hz |
| Recommended enclosure volume | 9 l |
| Voice coil diameter | 38.1 mm 1.5 in |
| BL factor | 9.4 N/A |
| Moving mass | 0.013 kg |
| Winding length | 14 mm |
| Air gap height | 6 mm |
| Xdamage pp | 30 mm |
THIELE SMALL PARAMETERS
| Fs | 90 Hz |
| Re | 5.3 ohm |
| Qms | 1.4 |
| Qes | 0.45 |
| Qts | 0.34 |
| Vas | 6.5 l |
| Cms | 235 µm / N |
| Rms | 5.5 kg / s |
| Efficiency % | 1 |
| Sd | 0.014 m² |
| Xmax | 5.7 mm |
| Vd | 80 cm³ |
| Le @1 kHz | 0.5 mH |
CONSTRUCTIVE DETAILS
Depth 80 mm 3.1 in
| Net weight | 2.2 kg 4.84 lb |
| Total weight | 2.3 kg 5.06 lb |
| Magnet | Ferrite |
| Brand |
|---|
