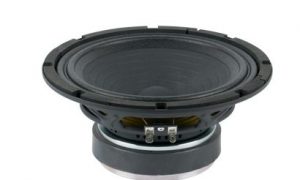

difuzor Beyma 6CMV2

Acasa/Second Hand/difuzor Beyma 6CMV2

difuzor Beyma 6CMV2

In Stock

31,00  + TVA

putere  220 W AES
sensibilitate  94 dB @ 2.83V @ 1m
domeniu de frecvenţă  95 – 8000 HZ
impedanţă  8 ohm
frecvenţă rezonanţă  90 Hz

6CMV2

TECHNICAL SPECIFICATIONS

Nominal diameter

165 mm 6.5 in

Nominal impedance

8 Ohm

Minimum impedance

6.7 ohm

Power capacity

220 W AES

Program power

440 W

Sensitivity

94 dB 1 W/1 m @ ZN

Frequency range

95-8000 Hz

Recommended enclosure volume

9 l

Voice coil diameter

38.1 mm 1.5 in

BL factor

9.4 N/A

Moving mass

0.013 kg

Winding length

14 mm

Air gap height

6 mm

Xdamage pp

30 mm

THIELE SMALL PARAMETERS



Fs

90 Hz

Re

5.3 ohm

Qms

1.4

Qes

0.45

Qts

0.34

Vas

6.5 l

Cms

235 µm / N

Rms

5.5 kg / s

Efficiency %

1

Sd

0.014 m²

Xmax

5.7 mm

Vd

80 cm³

Le @1 kHz

0.5 mH

CONSTRUCTIVE DETAILS



Depth

80 mm 3.1 in

Net weight

2.2 kg 4.84 lb

Total weight

2.3 kg 5.06 lb

Magnet

Ferrite
