difuzor Beyma 8CM V2

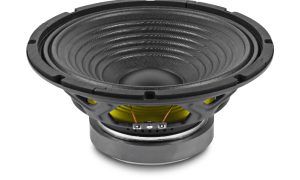

difuzor Beyma 10CM V2
<span class="woocommerce-Price-amount amount"><bdi>53,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor Beyma 6CM V2
<span class="woocommerce-Price-amount amount"><bdi>41,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
45,00 € + TVA
putere: |
250 W AES |
sensibilitate: |
94 dB/1W/1M |
domeniu de frecvenţă: |
80-8000 Hz |
impedanţă: |
8 Ohm |
frecvenţă rezonanţă: |
75 Hz |
preţ kit reparaţii: |
Descărcări:8CMV2
Category: 8 inch
TECHNICAL SPECIFICATIONS
| Nominal diameter | 200 mm 8 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 6.4 Ohm |
| Power capacity | 250 W AES |
| Program power | 500 W |
| Sensitivity | 94 dB 1 W @ 1 m @ ZN |
| Frequency range | 80-8000 Hz |
| Recommended enclosure volume | 20 l |
| Voice coil diameter | 38.1 mm 1.5 in |
| BL factor | 9.6 N/A |
| Moving mass | 0.021 kg |
| Winding length | 14 mm |
| Air gap height | 6 mm |
| Xdamage pp | 29 mm |
THIELE SMALL PARAMETERS
| Fs | 75 Hz |
| Re | 5.1 ohm |
| Qms | 7.7 |
| Qes | 0.55 |
| Qts | 0.52 |
| Vas | 14.6 l |
| Cms | 213 µm / N |
| Rms | 1.3 kg / s |
| Efficiency % | 1.1 |
| Sd | 0.022 m² |
| Xmax | 5.7 mm |
| Vd | 125 cm³ |
| Le @1 kHz | 0.6 mH |
CONSTRUCTIVE DETAILS
Depth 92 mm 3.6 in
| Net weight | 2.4 kg 5.3 lb |
| Total weight | 2.6 kg 5.7 lb |
| Magnet | Ferrite |
| Brand |
|---|
