difuzor Beyma 8CMV2

Acasa/Difuzoare/8 inch/difuzor Beyma 8CMV2
Nou

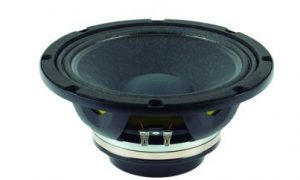

difuzor Beyma 8CMV2

In Stock

36,00  + TVA

putere  250 W AES
sensibilitate  94 dB @ 2.83V @ 1m
domeniu de frecvenţă  80 – 8000 HZ
impedanţă  8 ohm
frecvenţă rezonanţă  75 Hz

8CMV2

TECHNICAL SPECIFICATIONS

Nominal diameter

200 mm 8 in

Nominal impedance

8 Ohm

Minimum impedance

6.4 ohm

Power capacity

250 W AES

Program power

500 W

Sensitivity

94 dB 1 W/1 m @ ZN

Frequency range

80-8000 Hz

Recommended enclosure volume

20 l

Voice coil diameter

38.1 mm 1.5 in

BL factor

9.6 N /A

Moving mass

0.021 kg

Winding length

14 mm

Air gap height

6 mm

Xdamage pp

29 mm

THIELE SMALL PARAMETERS



Fs

75 Hz

Re

5.1 ohm

Qms

7.7

Qes

0.55

Qts

0.52

Vas

14.6 l

Cms

213 µm / N

Rms

1.3 kg / s

Efficiency %

1.1

Sd

0.022 m²

Xmax

5.7 mm

Vd

125 cm³

Le @1 kHz

0.6 mH

CONSTRUCTIVE DETAILS

Depth

92 mm 3.6 in

Net weight

2.4 kg 5.3 lb

Total weight

2.6 kg 5.7 lb

Magnet

Ferrite
