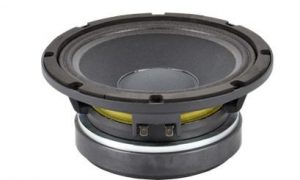

difuzor Beyma 8LW30

Acasa/Difuzoare/8 inch/difuzor Beyma 8LW30

difuzor Beyma 8LW30

In Stock

103,90  + TVA

putere : 250W AES
sensibilitate : 96dB @ 2.83V @ 1m
domeniu de frecvenţă : 65 – 6000Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 70Hz
preţ kit reparaţii : 35,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 200 mm 8 in
Nominal impedance 8 Ohm
Minimum impedance 6.9 ohm
Power capacity 250 W AES
Program power 500 W
Sensitivity 95 dB 1 W @ 1m @ 2Π
Frequency range 65-6000 Hz
Recommended enclosure volume 10 / 30 l 0.35 / 1.06 ft.³
Voice coil diameter 62.4 mm 2.5 in
BL factor 12 N /A
Moving mass 0.022 kg
Winding length 16 mm
Air gap height 7 mm
Xdamage pp 23 mm

THIELE SMALL PARAMETERS



Fs 70 Hz
Re 5.8 ohm
Qms 7
Qes 0.39
Qts 0.37
Vas 16 l
Cms 232 µm / N
Rms 1.4 kg / s
Efficiency % 1.35
Sd 0.022 m²
Xmax 4.5 mm
Vd 99 cm³
Le @1 kHz 1.1 mH

CONSTRUCTIVE DETAILS



Net weight 2.35 kg 5.17 lb
Total weight 2.5 kg 5.5 lb
Magnet Neodymium
