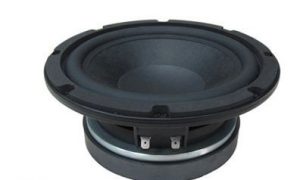

difuzor Beyma SM108

Acasa/Difuzoare/8 inch/difuzor Beyma SM108

difuzor Beyma SM108

In Stock

54,90  + TVA

putere : 150W AES
sensibilitate : 95dB @ 2.83V @ 1m
domeniu de frecvenţă : 65 – 6000Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 69Hz
preţ kit reparaţii : 29,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 200 mm 8 in
Nominal impedance 8 Ohm
Minimum impedance 7.5 ohm
Power capacity 150 W AES
Program power 300 W
Sensitivity 95 dB 1 W @ 1m @ 2Π
Frequency range 70-6000 Hz
Recommended enclosure volume 10 / 30 l 0.35 / 1.06 ft.³
Voice coil diameter 51.7 mm 2 in
BL factor 14 N/A
Moving mass 0.024 kg
Winding length 15 mm
Air gap height 7 mm
Xdamage pp 22 mm

THIELE SMALL PARAMETERS



Fs 71 Hz
Re 6.2 ohm
Qms 3.8
Qes 0.35
Qts 0.32
Vas 14.4 l
Cms 210 µm / N
Rms 2.8 kg / s
Efficiency % 1.4
Sd 0.022 m²
Xmax 6 mm
Vd 132 cm³
Le @1 kHz 0.9 mH

CONSTRUCTIVE DETAILS



Depth 94 mm 3.7 in
Net weight 3.1 kg 6.83 lb
Total weight 3.25 kg 7.15 lb
Magnet Ferrite
