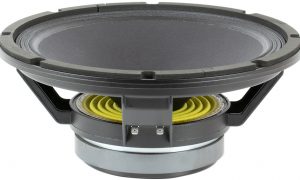

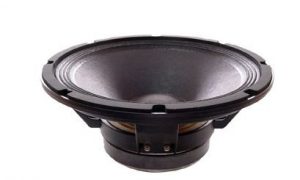

difuzor Beyma SM112/N

Acasa/Difuzoare/12 inch/difuzor Beyma SM112/N

difuzor Beyma SM112/N

In Stock

94,90  + TVA

putere : 400W AES
sensibilitate : 97dB @ 2.83V@ 1m
domeniu de frecvenţă : 35 – 4000Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 38Hz
preţ kit reparaţii : 47,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 300 mm 12 in
Nominal impedance 8 Ohm
Minimum impedance 7 ohm
Power capacity 400 W AES
Program power 800 W
Sensitivity 97 dB 1 W @ 1 m @ 2Π
Frequency range 40-4000 Hz
Recommended enclosure volume 30 / 100 l 1.06 / 3.53 ft.³
Voice coil diameter 77 mm 3 in
BL factor 17 N / A
Moving mass 0.058 Kg
Winding length 17.5 mm
Air gap height 7 mm
Xdamage pp 30 mm

THIELE SMALL PARAMETERS



Fs 40 Hz
Re 6.2 ohm
Qms 8
Qes 0.31
Qts 0.3
Vas 117.3 l
Cms 273 µm / N
Rms 1.8 kg / s
Efficiency % 2.1
Sd 0.055 m²
Xmax 7.25 mm
Vd 398 cm³
Le @1 kHz 1.2 mH

CONSTRUCTIVE DETAILS



Net weight 5.65 kg 12.45 lb
Total weight 6 kg 13.2 lb
Magnet Ferrite
