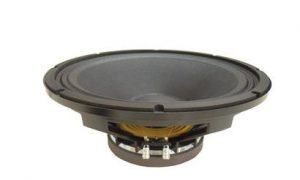

difuzor Beyma SM115N

Acasa/Difuzoare/15 inch/difuzor Beyma SM115N

difuzor Beyma SM115N

In Stock

99,90  + TVA

putere : 400W AES
sensibilitate : 98dB @ 2.83V @ 1m
domeniu de frecvenţă : 30 – 3000Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 29Hz
preţ kit reparaţii : 61,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 380 mm 15 in
Nominal impedance 8 Ohm
Minimum impedance 7.2 ohm
Power capacity 400 W AES
Program power 800 W
Sensitivity 98 dB 1 W @ 1 m @ ZN
Frequency range 35-3000 Hz
Recommended enclosure volume 60 / 150 l 2.1 / 5.25 ft³
Voice coil diameter 77 mm 3 in
BL factor 17.4 N/A
Moving mass 0.086 Kg
Winding length 17.5 mm
Air gap height 7 mm
Xdamage pp 30 mm

THIELE SMALL PARAMETERS



Fs 35 Hz
Re 6.4 ohm
Qms 8.5
Qes 0.4
Qts 0.38
Vas 267 l
Cms 243 µm / N
Rms 2.2 kg/s
Efficiency % 2.7
Sd 0.088 m²
Xmax 7.25 mm
Vd 638 cm³
Le @1 kHz 1.2 mH

CONSTRUCTIVE DETAILS



Net weight 6.5 kg 14.33 lb
Total weight 7.4 kg 16.31 lb
Magnet Ferrite
