difuzor coaxial Beyma, 6CX200Fe

Acasa/Difuzoare/coaxiale/difuzor coaxial Beyma, 6CX200Fe

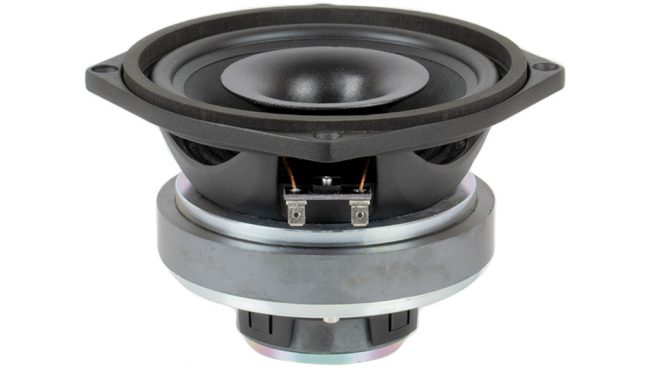

beyma-speakers-product-picture-coaxial-6CX200Fe

difuzor coaxial Beyma, 6CX200Fe

In Stock

144,95  + TVA

putere (LF/HF): 200/25W RMS,
sensibilitate(LF/HF): 94/102 dB/1W/1M,
domeniu de frecvenţă: 60-20000 Hz,
impedanţă(LF/HF): 8/16 ohm,
frecvenţă rezonanţă: 65 Hz,
preţ kit reparaţii(LF/HF): 60,95 Euro+TVA



TECHNICAL SPECIFICATIONS

Nominal impedance LF/HF
8/8 ohm
HF diaphragm ref.
5MCP5CX8
LF Recone kit ref.
5M6CX2ND8
Nominal diameter
165 mm 6.5 in
Minimum impedance LF/HF
5.3 / 6.0 ohm
Frequency range
60-20000 Hz
Power capacity LF/HF
200/25 W AES
Program power LF/HF
400/50 W
Sensitivity LF/HF
94/102 dB 1W/1m @ ZN
Recom. crossover frequency
3.5 kHz or higher (12 dB/oct. min slope)
Voice coil diameter LF/HF
50.8/25.4 mm – 2/1 in
Dispersion (conical)
70º
BL factor
9.2 N/A
Moving mass
0.014 kg
Winding length
13 mm
Xdamage pp
32 mm

PARAMETERS THIELE & SMALL

Fs
65 Hz
Re
4.9 ohm
Qms
5.1
Qes
0.34
Qts
0.32
Vas
10.54 l
Cms
408 µm / N
Rms
1.1 kg / s
Efficiency %
0.8
Sd
0.0135 m²
Xmax
5 mm
Vd
64 cm³
Le @1 kHz
0.3 mH

CONSTRUCTION DETAILS

Net weight
3.6 kg 7.92 lb
Total weight
4 kg / 8.81 lb
Magnet
Ferrite
