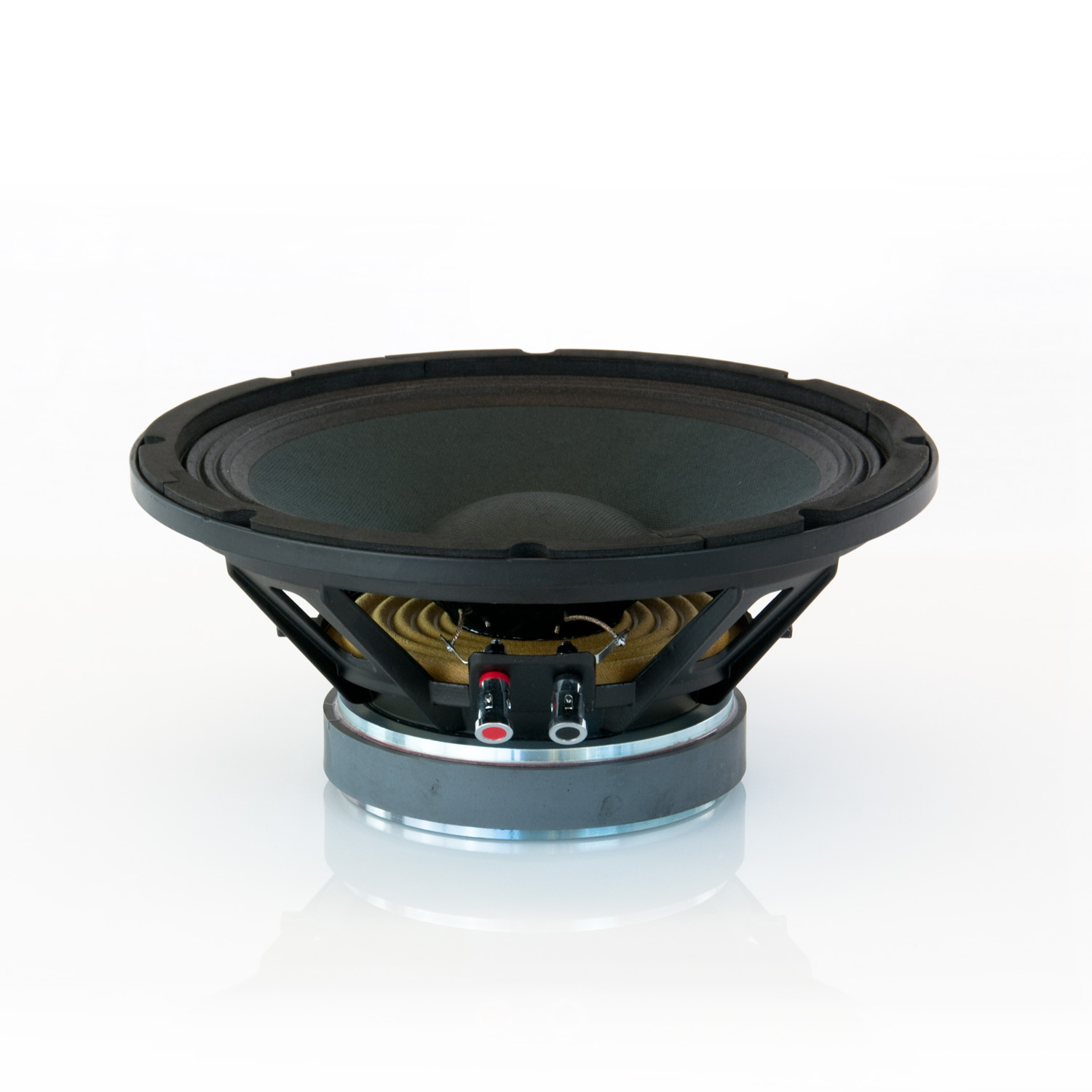

difuzor MasterAudio PA 10/8

Acasa/Difuzoare/10 inch/difuzor MasterAudio PA 10/8
Nou

difuzor MasterAudio PA 10/8

In Stock

31,95  + TVA

putere:
150W AES
sensibilitate:
94 dB /1W/ 1M
domeniu de frecvenţă:
60-6000 Hz
impedanţă:
8 Ohm
frecvenţă rezonanţă:
60 Hz
diametru bobină:
50 mm
Descărcări:PA10_8-Masteraudio

SPECIFICATIONS

Nominal Impedance 8 Ohm
RMS Power 150 W
MAX Power 300 W
Sensitivity (1W/1m) 94 dB
Frequency Range 60-6000 Hz
Voice Coil Diameter 50 mm
Magnet Ferrite
Magnet weight 40 oz
Basket Material Aluminium

THIELE AND SMALL PARAMETERS

Fs 60 Hz
Re 6.2 Ohm
Qes 0.62
Qms 18
Qts 0.6
Vas 42 l
Sd 300 cm²
Xmax 3 mm
Mms 29 gr
Bl 10 Txm
Le 25 mH
EBP 98 Hz

MOUNTING INFORMATION

Overall Diameter 260 mm (10″)
Bolt Circle Diameter 245 mm
Baffle cutout Diameter 233 mm
Depth 115 mm
Mounting Depth 103 mm
Net Weight 3 Kg
