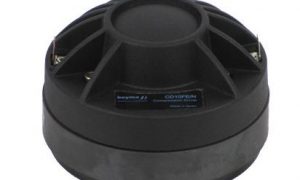

driver Beyma CD1014Nd/N

Acasa/Difuzoare/înalte/driver Beyma CD1014Nd/N

driver Beyma CD1014Nd/N

In Stock

99,00  + TVA

putere : 70W AES peste 1,2 kHz; 140W peste 1,2 kHz
sensibilitate : 110 dB, 2,83 V @ 1 m
domeniu de frecvenţă : 0,7 – 19 kHz
preţ kit reparaţii : 25,90 euro



TECHNICAL SPECIFICATIONS



Throat diameter 36 mm 1.4 in
Nominal impedance 8 Ohm
Minimum impedance 5.2 ohm @ 4.5 kHz
Re 4.3 ohm
Power capacity 70 W AES above 1.2 kHz
Program power 140 W above 1.2 kHz
Sensitivity 110 dB 1 W @ 1 m coupled to horn
Frequency range 700-19000 Hz
Recom. crossover frequency 1.2 kHz or higher (12dB/oct min slope)
Voice coil diameter 44.4 mm 1.75 in
Flux density 1.65 T
BL factor 6.6 N/A
Diaphragm material PM4

CONSTRUCTIVE DETAILS



External diameter 115 mm 4.5 in
Depth 76 mm 2.9 in
Mounting Four M6 threaded holes. 90º apart on
101.6 mm (4 in) diameter circle.
Mounting hardware is supplied
Net weight 1.5 kg 3.3 lb
Total weight 2.2 kg 4.85 lb
Magnet Neodymium
