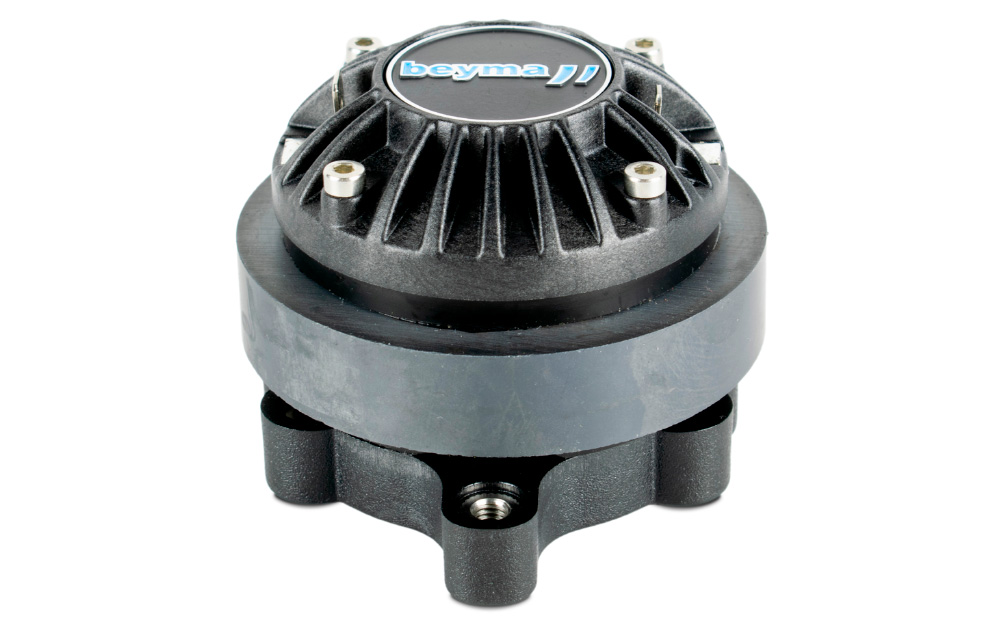

driver Beyma CD101Fe/Pk

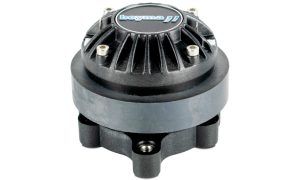

driver Beyma CD101Fe/Pt
<span class="woocommerce-Price-amount amount"><bdi>57,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
driver Beyma CD171Fe/Pk
<span class="woocommerce-Price-amount amount"><bdi>79,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
57,95 € + TVA
| Putere: | 40W AES peste 2 kHz, program 80W peste 2 kHz |
| Sensibilitate: | 108 dB/1W/ 1M cuplat la horn |
| Domeniu de frecvență: | 2000-20000 Hz |
| Impedanță: | 8 Ohm |
| Diametru ieșire: | 25 mm 1 in |
| Diametru bobină: | 28 mm 1.1 in |
| Preț kit reparații: |
Descărcări: beyma-speakers-data-sheet-compression-driver-CD101FePK
carna Difuzoare, drivere de compresie
TECHNICAL SPECIFICATIONS
| Throat diameter | 25.4 mm 1 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 7 Ohm |
| Re | 6 Ohm |
| Power capacity | 40 W AES above 2 kHz |
| Program power | 80 W above 2 kHz |
| Sensitivity | 108 dB 1 W @ 1 m coupled to horn TD-164 |

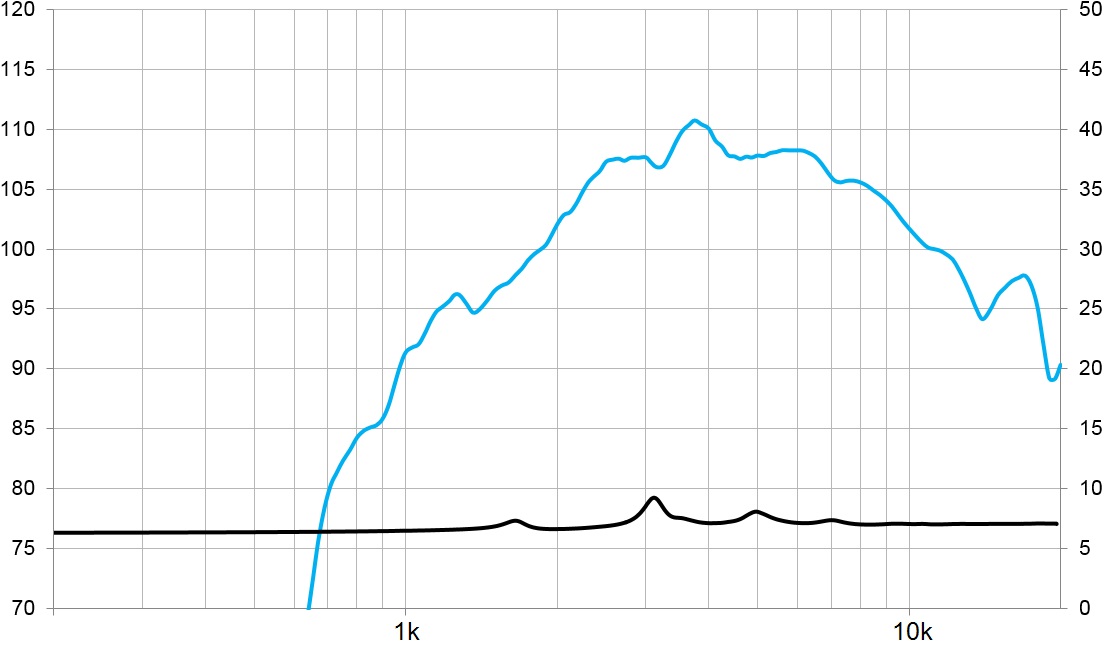

| Frequency range | 2000-20000 Hz |
| Recom. crossover frequency | 2 kHz or higher (12dB/oct min slope) |
| Voice coil diameter | 28 mm 1.1 in |
| Flux density | 1.4 T |
| BL factor | 2.3 N/A |
| Diaphragm material | HT Polymer |
CONSTRUCTIVE DETAILS
| External diameter | 90.4 mm 3.55 in |
| Depth | 55 mm 2.16 in |
| Mounting | Three M5 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle. Two M5 threaded holes. 180º apart on 76.2 mm (3 in) diameter circle. |
| Net weight | 0.5 kg 1.1 lb |
| Total weight | 0.8 kg 1.76 lb |
| Magnet | Ferrite |
