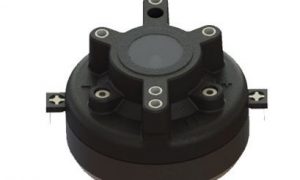

driver Beyma CD14Nd

Acasa/Difuzoare/înalte/driver Beyma CD14Nd

driver Beyma CD14Nd

In Stock

163,95  + TVA



Putere: 60W AES peste 800Hz, program 120W peste 800 Hz
Sensibilitate: 108 dB/ 1W/ 1M cuplat la TD-385
Domeniu de frecvență: 600-17000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 36 mm 1,4 in
Diametru bobină: 63,5 mm 2,5 in
Preț kit reparații: 55,95 EURO+TVA





TECHNICAL SPECIFICATIONS



Throat diameter 36 mm 1.4 in
Nominal impedance 8 Ohm
Minimum impedance 7.6 ohm @ 3.5 kHz
Re 5.3 ohm
Power capacity 60 W AES above 800 Hz
Program power 120 W above 800 Hz
Sensitivity 108 dB 1W / 1m @ ZN coupled to TD-385

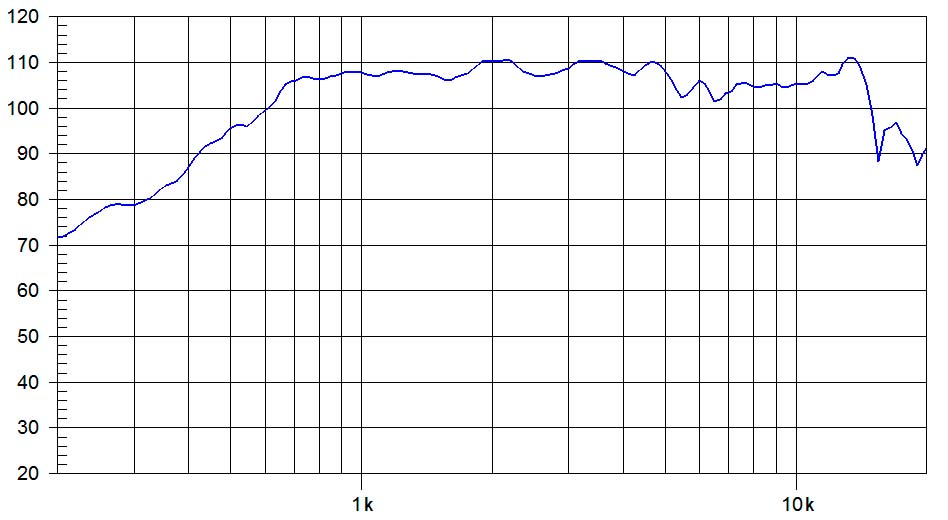

Frequency range 600-17000 Hz
Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)
Voice coil diameter 63.5 mm 2.5 in
Flux density 1.7 T
BL factor 10 N / A
Diaphragm material PM4

CONSTRUCTIVE DETAILS



External diameter 120 mm 4.72 in
Depth 49 mm 1.93 in
Mounting Four M6 threaded holes. 90º apart on
101.6 mm (4 in) diameter circle.
Mounting hardware is supplied
Net weight 1.9 kg 4.18 lb
Total weight 2.1 kg 4.63 lb
Magnet Neodymium
