driver Beyma CD151Fe/Pt

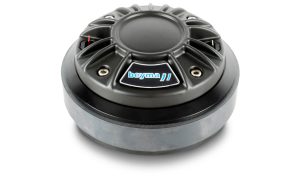

driver Beyma CD171Fe/Pt
<span class="woocommerce-Price-amount amount"><bdi>79,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA

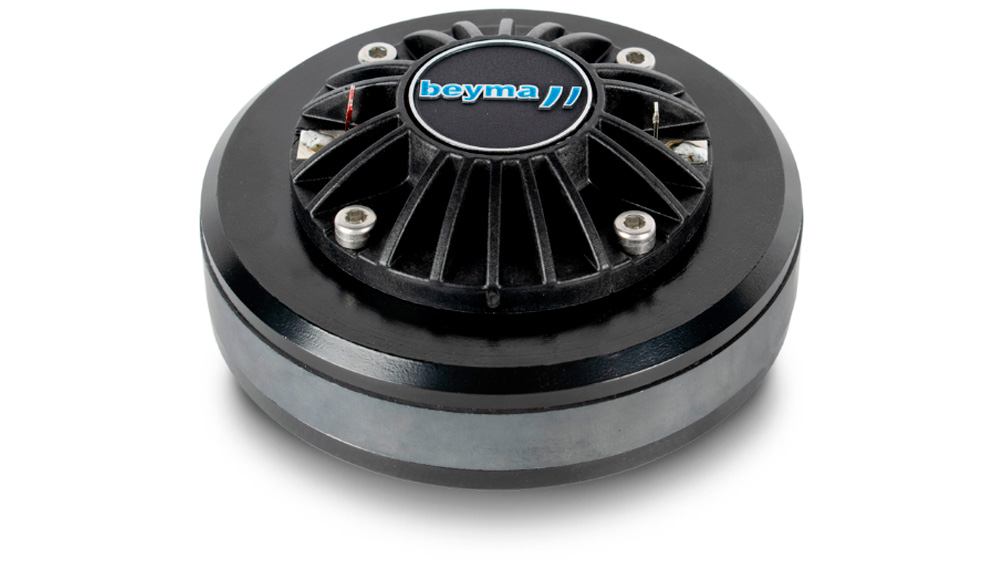

driver Beyma CD151Fe/Pk
<span class="woocommerce-Price-amount amount"><bdi>68,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
68,95 € + TVA
| Putere: | 70W AES peste 1.8 kHz, program 140W peste 1.8 kHz |
| Sensibilitate: | 110 dB/1W/ 1M cuplat la horn |
| Domeniu de frecvență: | 900-20000 Hz |
| Impedanță: | 8 Ohm |
| Diametru ieșire: | 25 mm 1 in |
| Diametru bobină: | 38.1 mm 1.5 in |
| Preț kit reparații: | 44,95 EURO+TVA |
Descărcări: beyma-speakers-data-sheet-compression-driver-CD-151Fe-PT
carna Difuzoare, drivere de compresie
TECHNICAL SPECIFICATIONS
| Throat diameter | 25.4 mm 1 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 5.3 Ohm |
| Re | 4.5 Ohm |
| Power capacity | 70 W AES above 1.8 kHz |
| Program power | 140 W above 1.8 kHz |
| Sensitivity | 110 dB 1 W @ 1 m coupled to horn TD-164 |
| Frequency range | 900-20000 Hz |
| Recom. crossover frequency | 1.8 kHz or higher (12dB/oct min slope) |
| Voice coil diameter | 38.1 mm 1.5 in |
| Flux density | 1.6 T |
| BL factor | 6 N/A |
| Diaphragm material | Advanced Polyester |
CONSTRUCTIVE DETAILS
| External diameter | 102 mm 4.01 in |
| Depth | 44.4 mm 1.75 in |
| Mounting | Three M5 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle. Two M5 threaded holes. 180º apart on 76.2 mm (3 in) diameter circle. |
| Net weight | 1.3 kg 2.8 lb |
| Total weight | 1.4 kg 3 lb |
| Magnet | Ferrite |
