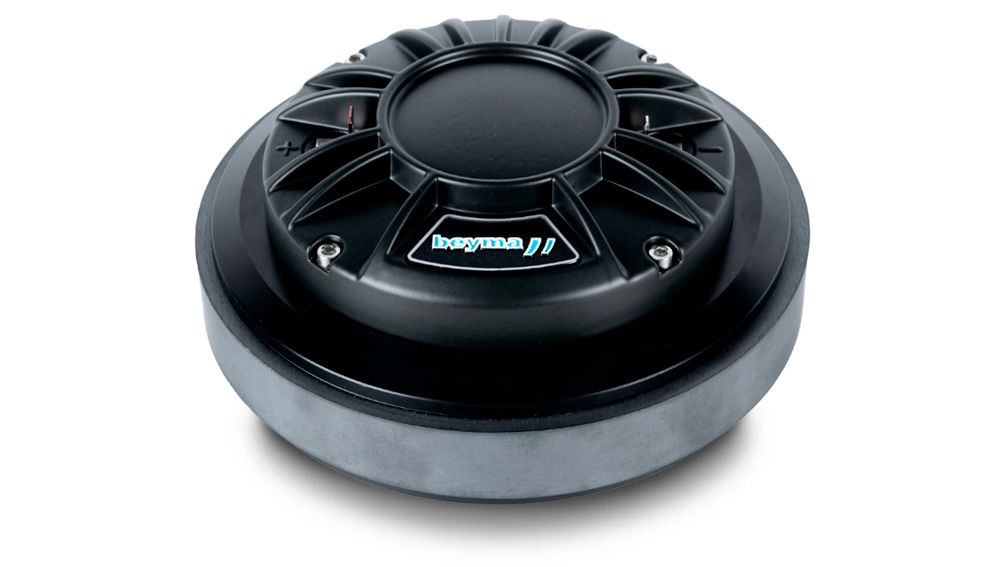

driver Beyma CD2514Fe/Pk

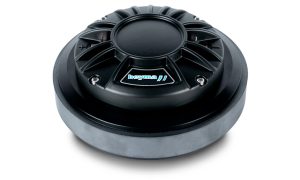

driver Beyma CD2514Fe/Pt
<span class="woocommerce-Price-amount amount"><bdi>125,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
driver Beyma CD1114Fe
<span class="woocommerce-Price-amount amount"><bdi>72,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
125,95 € + TVA
| Putere: | 100W AES peste 1,2 kHz, program 200W peste 1,2 kHz |
| Sensibilitate: | 109 dB/1W/ 1M cuplat la horn |
| Domeniu de frecvență: | 600-20000 Hz |
| Impedanță: | 8 Ohm |
| Diametru ieșire: | 36 mm 1.4 in |
| Diametru bobină: | 63.5 mm 2.5 in |
| Preț kit reparații: | 47.95 EURO+TVA |
Descărcări: beyma-speakers-data-sheet-compression-driver-CD-2514Fe-PK
carna Difuzoare, drivere de compresie
TECHNICAL SPECIFICATIONS
| Throat diameter | 36 mm 1.4 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 6.3 Ohm |
| Re | 4.4 ohm |
| Power capacity | 100 W AES above 1.2 kHz |
| Program power | 200 W above 1.2 kHz |
| Sensitivity | 109 dB 1 W @ 1 m coupled to horn TD 385 |
| Frequency range | 600-20000 Hz |
| Recom. crossover frequency | 800 Hz or higher (12dB/oct min slope) |
| Voice coil diameter | 63.5 mm 2.5 in |
| Flux density | 1.6 T |
| BL factor | 6.3 N/A |
| Diaphragm material |
HT Polymer
|
CONSTRUCTIVE DETAILS
| External diameter |
145 mm 5.71 in
|
| Depth | 62.7 mm 2.47 in |
| Mounting | Four M6 threaded holes. 90º apart on 101.6 mm (4 in) diameter circle. |
| Net weight | 3.5 kg 7.7 lb |
| Total weight | 3.7 kg 8.1 lb |
| Magnet | Ferrite |
| Brand |
|---|
