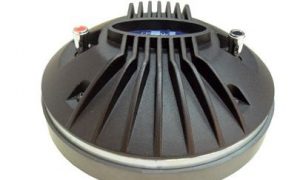

driver Beyma CP750Nd

Acasa/Difuzoare/înalte/driver Beyma CP750Nd

driver Beyma CP750Nd

In Stock

295,00  + TVA

putere : 70W AWS @0.8Khz / 90W AES @ 1.5kHz
sensibilitate : 112dB @ 1W @ 1m
domeniu de frecvenţă : 0.6 – 20kHz
preţ kit reparaţii : 65,97 Euro + TVA



TECHNICAL SPECIFICATIONS



Throat diameter 50.8 mm 2 in
Nominal impedance 8 Ohm
Minimum impedance 7.1 ohm @ 5 kHz
Re 5.5 ohm
Power capacity 60 W AES above 800 Hz
Program power 120 W above 800 Hz
Sensitivity 112 dB 1 W @ 1 m coupled to horn
Frequency range 600-20000 Hz
Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)
Voice coil diameter 72.2 mm 2.9 in
Flux density 2.2 T
BL factor 11.5 N/A
Diaphragm material Titanium dome with polyester surround

CONSTRUCTIVE DETAILS



External diameter 145 mm 5.70 in
Depth 89 mm 3.5 in
Mounting Four M6 threaded holes. 90º apart on
101.6 mm (4 in) diameter circle.
Mounting hardware is supplied
Net weight 3.5 kg 7.7 lb
Total weight 3.75 kg 8.25 lb
Magnet Neodymium
