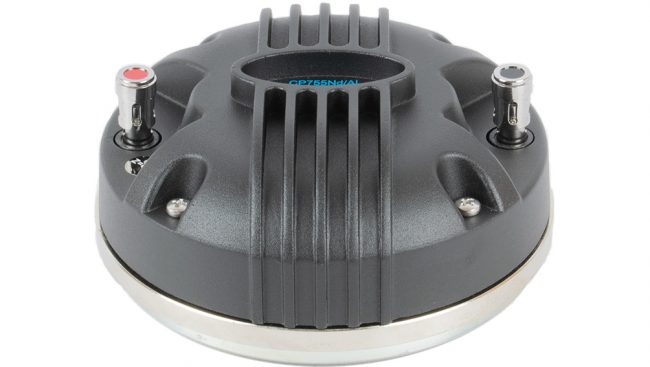

driver Beyma CP755Nd/AL

beyma-speakers-product-picture-compression-drivers-CP755NdAl

driver Beyma CP755Nd/AL

In Stock

383,95  + TVA





Putere: 60W AES peste 800 Hz, program 120W peste 800 Hz
Sensibilitate: 112 dB/ 1W/1M cuplat la TD-365
Domeniu de frecvență: 600-20000 Hz
Impedanță: 8 Ohm
Diametru ieșire: 36 mm 1,4 in
Diametru bobină: 72,4 mm 2,85 in
Preț kit reparații: 72,95 EURO+TVA





TECHNICAL SPECIFICATIONS



Throat diameter 36 mm 1.4 in
Nominal impedance 8 Ohm
Minimum impedance 7.3 ohm @ 3.5 kHz
Re 5.5 ohm
Power capacity 60 W AES above 800 Hz
Program power 120 W above 800 Hz
Sensitivity 112 dB 1 W @ 1 m coupled to horn
Frequency range 600-20000 Hz
Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)
Voice coil diameter 72.2 mm 2.9 in
Flux density 2.2 T
BL factor 11.5 N/A
Diaphragm material Titanium dome with polyester surround

CONSTRUCTIVE DETAILS



External diameter 145 mm 5.70 in
Depth 65 mm 2.56 in
Mounting Four M6 threaded holes. 90º apart on
101.6 mm (4 in) diameter circle.
Net weight 2.96 kg 6.51 lb
Total weight 3.21 kg 7.06 lb
Magnet Neodymium
