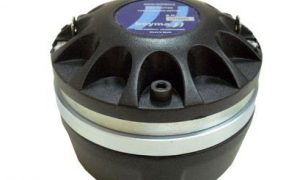

driver Beyma SMC1050/NS

Acasa/Difuzoare/înalte/driver Beyma SMC1050/NS

driver Beyma SMC1050/NS

In Stock

66,00  + TVA

putere : 40W AES @ 1kHz
sensibilitate : 108dB @ 1W @ 1m
domeniu de frecvenţă : 0.8 – 18kHz
preţ kit reparaţii : 24,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Throat diameter 25.4 mm 1 in
Nominal impedance 8 Ohm
Minimum impedance 5.3 ohm @ 4.3 kHz
Re 5.6 ohm
Power capacity 40 W AES above 1.2 kHz
Program power 80 W above 1.2 kHz
Sensitivity 108 dB 1 W @ 1 m coupled to horn
Frequency range 800-18000 Hz
Recom. crossover frequency 1.2 kHz or higher (12dB/oct min slope)
Voice coil diameter 44.4 mm 1.75 in
Flux density 1.8 T
BL factor 9.3 N/A
Diaphragm material Polyester

CONSTRUCTIVE DETAILS



External diameter 120 mm 4.72 in
Depth 61 mm 2.40 in
Mounting Three M5 threaded holes. 120º apart on
57 mm (2.24 in) diameter circle.
Two M5 threaded holes. 180º apart on
76.2 mm (3 in) diameter circle.
Net weight 2.2 kg 4.84 lb
Total weight 2.35 kg 5.17 lb
Magnet Ferrite
