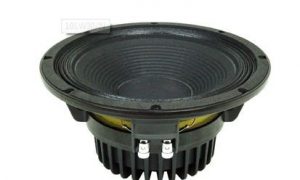

difuzor Beyma 10MC500

Acasa/Difuzoare/10 inch/difuzor Beyma 10MC500

difuzor Beyma 10MC500

In Stock

102,90  + TVA

putere : 500 / 1000W AES
sensibilitate : 97db / 1w /1m
domeniu de frecvenţă : 60 – 5000 hz
impedanţă : 8 ohmi
frecvenţă rezonanţă : 60 hz



TECHNICAL SPECIFICATIONS



Nominal diameter 250 mm 10 in
Nominal impedance 8 Ohm
Minimum impedance 6.1 ohm
Power capacity 500 W AES
Program power 1000 W
Sensitivity 97 dB 1 W @ 1 m @ ZN
Frequency range 60-5000 Hz
Voice coil diameter 63.5 mm 2.5 in
BL factor 18.3 N / A
Moving mass 0.044 kg
Winding length 19.5 mm
Air gap height 9.5 mm
Xdamage pp 40 mm

THIELE SMALL PARAMETERS



Fs 60 Hz
Re 5.7 ohm
Qms 7.5
Qes 0.29
Qts 0.28
Vas 26 l
Cms 154 µm / N
Rms 2.3 kg/s
Efficiency % 2
Sd 0.035 m²
Xmax 8 mm
Vd 280 cm³
Le @1 kHz 1mH

CONSTRUCTIVE DETAILS



Net weight 5.7 kg 12.5 lb
Total weight 6.1 kg 13.42 lb
Magnet Ferrite
