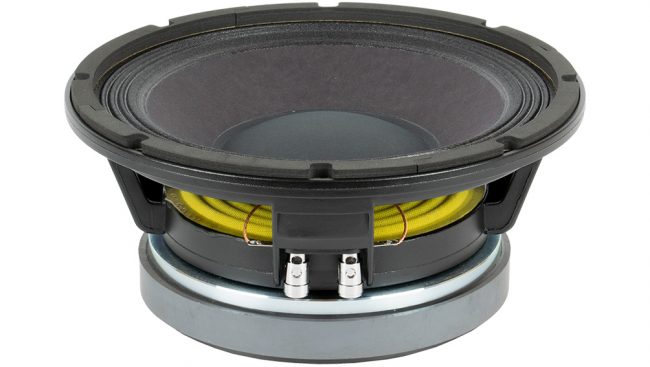

difuzor Beyma 10MI100

Acasa/Difuzoare/10 inch/difuzor Beyma 10MI100

difuzor Beyma 10MI100

In Stock

109,90  + TVA

putere : 350W AES
sensibilitate : 98dB @ 2.83V @ 1m
domeniu de frecvenţă : 70 – 4000Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 50Hz
preţ kit reparaţii : 64,90  Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 250 mm 10 in
Nominal impedance 8 Ohm
Minimum impedance 6.6 ohm
Power capacity 350 W AES
Program power 700 W
Sensitivity 98 dB 1 W @ 1 m @ ZN
Frequency range 70-4000 Hz
Recommended enclosure volume
Voice coil diameter 77 mm 3 in
BL factor 18.7 N/A
Moving mass 0.038 kg
Winding length 13.5 mm
Air gap height 10 mm
Xdamage pp 24 mm

THIELE SMALL PARAMETERS



Fs 50 Hz
Re 6.3 ohm
Qms 6.6
Qes 0.22
Qts 0.21
Vas 54 l
Cms 266 µm / N
Rms 1.8 kg / s
Efficiency % 3
Sd 0.038 m²
Xmax 4.5 mm
Vd 170 cm³
Le @1 kHz 0.9 mH

CONSTRUCTIVE DETAILS



Net weight 7.1 kg 15.6 lb
Total weight 7.5 kg 16.5 lb
Magnet Ferrite
