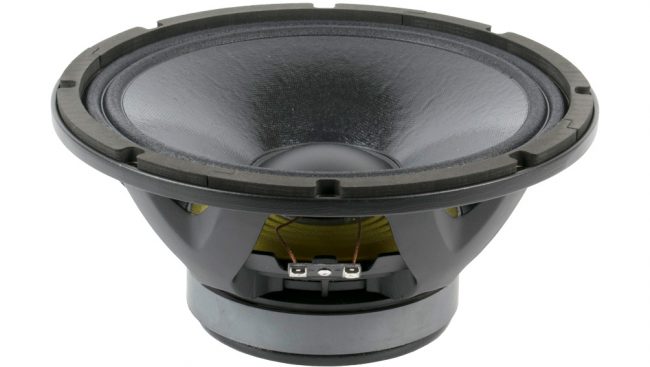

difuzor Beyma 10WR300

Acasa/Difuzoare/10 inch/difuzor Beyma 10WR300

difuzor Beyma 10WR300

In Stock

68,90  + TVA

putere : 300 / 600W AES
sensibilitate : 95db / 1w /1m
domeniu de frecvenţă : 50 – 5000 hz
impedanţă : 8 ohmi
frecvenţă rezonanţă : 47 hz



TECHNICAL SPECIFICATIONS



Nominal diameter 250 mm 10 in
Nominal impedance 8 Ohm
Minimum impedance 6.5 ohm
Power capacity 300 W AES
Program power 600 W
Sensitivity 95 dB 1 W @ 1m @ 2Π
Frequency range 50-5000 Hz
Recommended enclosure volume 15 / 50 l 0.53 / 1.77 ft.³
Voice coil diameter 50.8 mm 2 in
BL factor 14.2 N/A
Moving mass 0.039 kg
Winding length 15 mm
Air gap height 8 mm
Xdamage pp 30 mm

THIELE SMALL PARAMETERS



Fs 47 Hz
Re 6 ohm
Qms 3.9
Qes 0.35
Qts 0.32
Vas 50.9 l
Cms 292 µm / N
Rms 2.9 kg/s
Efficiency % 1.5
Sd 0.035 m²
Xmax 6 mm
Vd 210 cm³
Le @1 kHz 1mH

CONSTRUCTIVE DETAILS



Depth 117 mm 4.6 in
Net weight 3.5 kg 7.7 lb
Total weight 3.9 kg 8.6 lb
Magnet Ferrite
