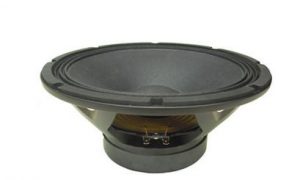

difuzor Beyma 12MCS500

Acasa/Difuzoare/12 inch/difuzor Beyma 12MCS500

difuzor Beyma 12MCS500

In Stock

98,90  + TVA

putere : 500 / 1000W AES
sensibilitate : 97db / 1w /1m
domeniu de frecvenţă : 65 – 5000 hz
impedanţă : 8 ohmi
frecvenţă rezonanţă : 62 hz



TECHNICAL SPECIFICATIONS



Nominal diameter 300 mm 12 in
Nominal impedance 8 Ohm
Minimum impedance 7.3 ohm
Power capacity 500 W AES
Program power 1000 W
Sensitivity 97 dB 1 W @ 1 m @ ZN
Frequency range 65-5000 Hz
Voice coil diameter 63.5 mm 2.5 in
BL factor 18 N/A
Moving mass 0.064 kg
Winding length 19.5 mm
Air gap height 9.5 mm
Xdamage pp 40 mm

THIELE SMALL PARAMETERS



Fs 62 Hz
Re 5.7 ohm
Qms 7.8
Qes 0.44
Qts 0.42
Vas 44 l
Cms 103 µm / N
Rms 3.18 kg/s
Efficiency % 2.3
Sd 0.055m²
Xmax 8 mm
Vd 440 cm³
Le @1 kHz 1mH

CONSTRUCTIVE DETAILS



Depth 141 mm 5.55 in
Net weight 6 kg 13.3 lb
Total weight 6.7 kg 14.77 lb
Magnet Ferrite
