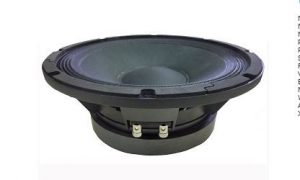

difuzor Beyma 12P80Nd V2

Acasa/Difuzoare/12 inch/difuzor Beyma 12P80Nd V2

difuzor Beyma 12P80Nd V2

In Stock

251,90  + TVA

putere : 700 @ 1400 W
sensibilitate : 101 dB @ 1w @ 1m
domeniu de frecvenţă : 45 – 4000Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 45Hz
preţ kit reparaţii : 75,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 300 mm 12 in
Nominal impedance 8 Ohm
Minimum impedance 5.6 ohm
Power capacity 700 W AES
Program power 1400 W
Sensitivity 101 dB 1 W @ 1 m @ 2Π
Frequency range 45-4000 Hz
Voice coil diameter 101.6 mm 4 in
BL factor 25.3 N / A
Moving mass 0.067 kg
Winding length 20 mm
Air gap height 12 mm
Xdamage pp 52 mm

THIELE SMALL PARAMETERS



Fs 45 Hz
Re 5.1 ohm
Qms 4.25
Qes 0.16
Qts 0.15
Vas 77.1 l
Cms 180 µm / N
Rms 4.5 kg / s
Efficiency % 4.65
Sd 0.055m²
Xmax 7.5 mm
Vd 412 cm³
Le @1 kHz 0.75 mH

CONSTRUCTIVE DETAILS



Depth 130 mm 5.12 in
Net weight 5.6 kg 12.32 lb
Total weight 6.3 kg 13.86 lb
Magnet Neodymium
