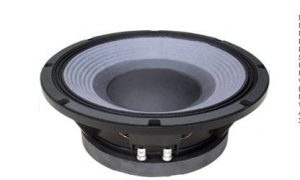

difuzor Beyma 12P80Fe V2

Acasa/Difuzoare/12 inch/difuzor Beyma 12P80Fe V2

difuzor Beyma 12P80Fe V2

In Stock

168,90  + TVA

putere : 700 @ 1400 W
sensibilitate : 100 dB @ 1w @ 1m
domeniu de frecvenţă : 50 – 4000 Hz
impedanţă : 8 ohm
frecvenţă rezonanţă : 51 Hz



TECHNICAL SPECIFICATIONS



Nominal diameter 300 mm 12 in
Nominal impedance 8 Ohm
Minimum impedance 6.5 ohm
Power capacity 700 W AES
Program power 1400 W
Sensitivity 100 dB 1 W @ 1 m @ 2Π
Frequency range 50-4000 Hz
Voice coil diameter 101.6 mm 4 in
BL factor 23 N / A
Moving mass 0.068 kg
Winding length 20 mm
Air gap height 12 mm
Xdamage pp 52 mm

THIELE SMALL PARAMETERS



Fs 51 Hz
Re 4.8 ohm
Qms 4.2
Qes 0.20
Qts 0.185
Vas 60.5 l
Cms 140 µm / N
Rms 5.3 kg/s
Efficiency % 3.8
Sd 0.055 m²
Xmax 7.5 mm
Vd 412 cm³
Le @1 kHz 1mH

CONSTRUCTIVE DETAILS



Depth 130 mm 5.12 in
Net weight 11.5 kg 25.3 lb
Total weight 12.4 kg 27.3 lb
Magnet Ferrite
