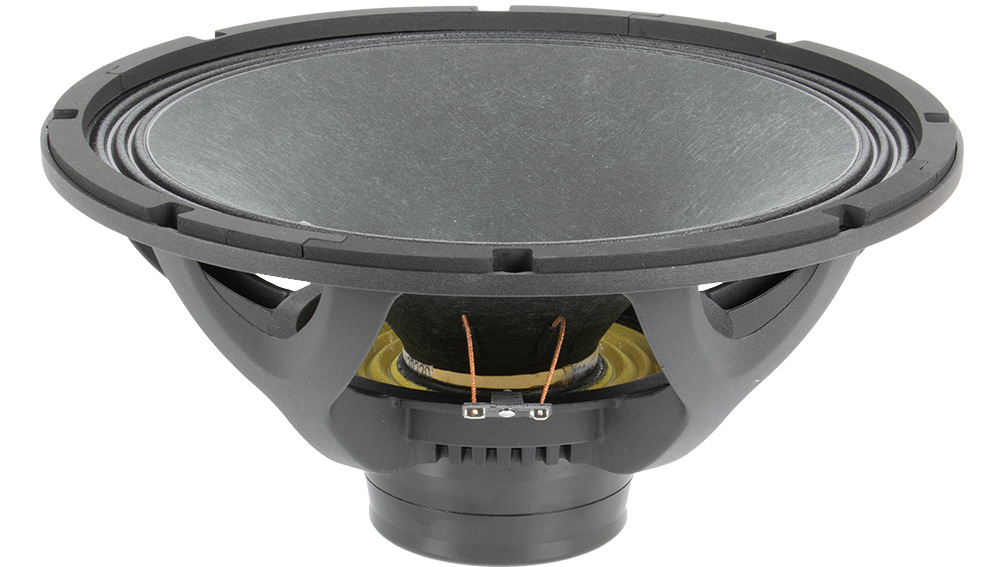

difuzor Beyma 14MC700Nd

Acasa/Difuzoare/14 inch/difuzor Beyma 14MC700Nd
Nou

difuzor Beyma 14MC700Nd

In Stock

188,95  + TVA

putere:
700W AES,
sensibilitate:
99 dB/1W/1M,
domeniu de frecvenţă:
55-4000Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
51Hz,
preţ kit reparaţii:
——- Euro+TVA

14MC700Nd

TECHNICAL SPECIFICATIONS



Nominal diameter

350 mm 14 in

Nominal impedance

8 Ohm

Minimum impedance

7.2 ohm

Power capacity

700 W AES

Program power

1400 W

Sensitivity

99 dB 1 W/1 m @ ZN

Frequency range

55-4000 Hz

Recommended enclosure volume

55 l

Voice coil diameter

76.2 mm 3 in

BL factor

22 N/A

Moving mass

0.086 kg

Winding length

18 mm

Air gap height

10 mm

Xdamage pp

48 mm

THIELE SMALL PARAMETERS



Fs

51 Hz

Re

5.3 ohm

Qms

3.3

Qes

0.30

Qts

0.28

Vas

78 l

Cms

110 µm / N

Rms

8.3 kg/s

Efficiency %

3.3

Sd

0.070 m²

Xmax

7 mm

Vd

490 cm³

Le @1 kHz

1 mH

CONSTRUCTIVE DETAILS



Depth

166 mm 6.5 in

Net weight

4 kg 8.82lb

Total weight

5 kg 11 lb

Magnet

Neodymium
