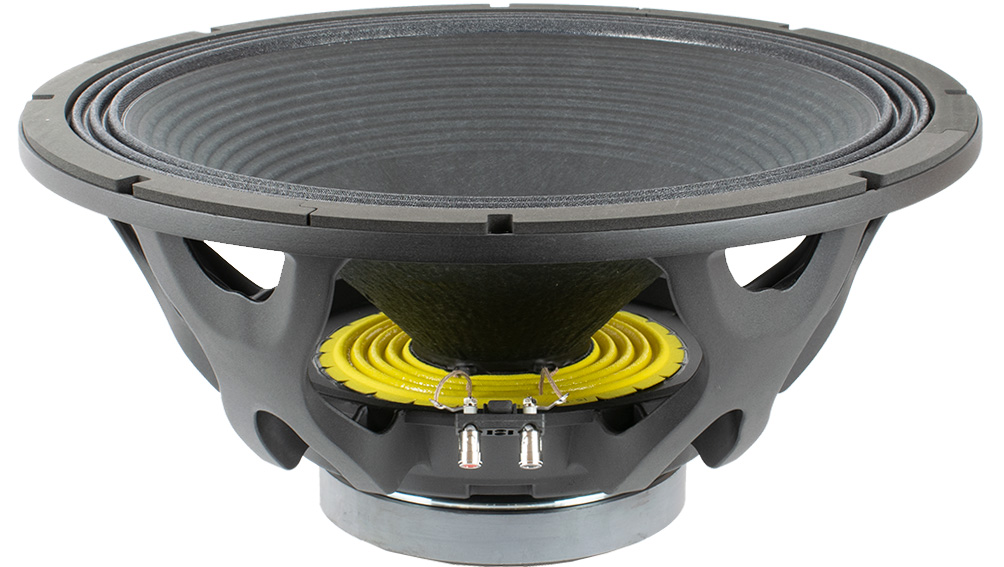

difuzor Beyma 21QLEX1600Fe

Acasa/Difuzoare/21 inch/difuzor Beyma 21QLEX1600Fe
Nou

difuzor Beyma 21QLEX1600Fe

In Stock

348,95  + TVA



putere:
1600/3200W,
sensibilitate:
98dB/1W/1m,
domeniu de frecvenţă:
30-1000Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
30 hz,

preț kit reparații: ———————-

21QLEX1600Fe

TECHNICAL SPECIFICATIONS



Nominal diameter

540 mm 21 in

Nominal impedance

8 Ohm

Minimum impedance

6.3 ohm

Power capacity

1600 W AES

Program power

3200 W

Sensitivity

98 dB 1 W/1 m @ ZN

Frequency range

30-1000 Hz

Recommended enclosure volume

170 l

Voice coil diameter

101.6 mm 4 in

BL factor

36.4 N/A

Moving mass

0.388 kg

Winding length

32 mm

Air gap height

15 mm

Xdamage pp

60 mm

THIELE SMALL PARAMETERS



Fs

30 Hz

Re

5.4 ohm

Qms

4.5

Qes

0.30

Qts

0.28

Vas

309 l

Cms

72 µm / N

Rms

16.2 kg/s

Efficiency %

2.7

Sd

0.1734 m²

Xmax

13 mm

Vd

2254 cm³

Le @1 kHz

4 mH

CONSTRUCTIVE DETAILS



Depth

266 mm 10.5 in

Net weight

17.1 kg 37.6 lb

Total weight

19.6 kg 43.1 lb

Magnet

Ferrite
