difuzor Beyma 18LEX1600Fe

Acasa/Difuzoare/18 inch/difuzor Beyma 18LEX1600Fe
Nou

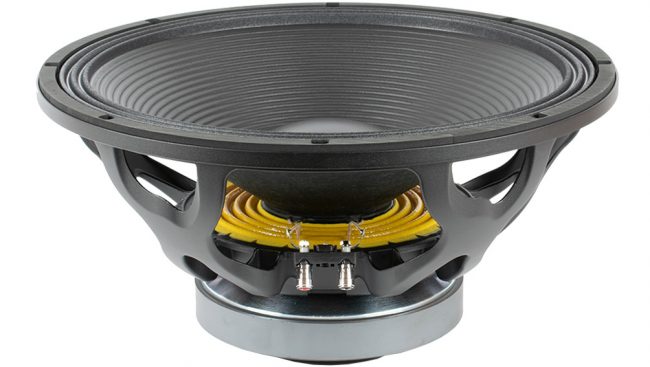

beyma-speakers-product-picture-low-mid-frequency-18LEX1600Fe

difuzor Beyma 18LEX1600Fe

In Stock

310,95  + TVA

putere:
1600 W AES
sensibilitate:
97 dB/1W/1M
domeniu de frecvenţă:
35-1000 Hz
impedanţă:
8 Ohm
frecvenţă rezonanţă:
34 Hz
preţ kit reparaţii:
 148,95 Euro+TVA
Descărcări: 18LEX1600Fe

TECHNICAL SPECIFICATIONS



Nominal diameter

460 mm 18 in

Nominal impedance

8 Ohm

Minimum impedance

6.1 ohm

Power capacity

1600 W AES

Program power

3200 W

Sensitivity

97 dB 1 W/1 m @ ZN

Frequency range

35-1000 Hz

Voice coil diameter

101.6 mm 4 in

BL factor

26.9 N/A

Moving mass

0.252 kg

Winding length

32 mm

Air gap height

15 mm

Xdamage pp

60 mm



THIELE SMALL PARAMETERS



Fs

34 Hz

Re

5.3 ohm

Qms

7.4

Qes

0.4

Qts

0.38

Vas

188 l

Cms

85 µm / N

Rms

7.4 kg / s

Efficiency %

1.9

Sd

0.1255 m²

Xmax

13 mm

Vd

1631 cm³

Le @1 kHz

1.7 mH

CONSTRUCTIVE DETAILS



Depth

233 mm 9.2 in

Net weight

14.6 kg 32.1 lb

Total weight

15.9 kg 35.0 lb

Magnet

Ferrite



TECHNOLOGIES

MALT CROSS
