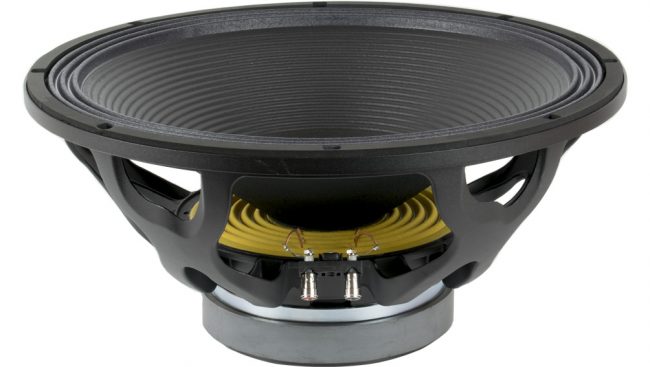

difuzor Beyma 18LEX1000Fe

Acasa/Difuzoare/18 inch/difuzor Beyma 18LEX1000Fe
Nou

difuzor Beyma 18LEX1000Fe

In Stock

205,95  + TVA

putere:
1000 W AES
sensibilitate:
98 dB/1W/1M
domeniu de frecvenţă:
35-1000 Hz
impedanţă:
8 Ohm
frecvenţă rezonanţă:
34 Hz
preţ kit reparaţii:
———-
Descărcări: 18LEX1000Fe

TECHNICAL SPECIFICATIONS



Nominal diameter

460 mm 18 in

Nominal impedance

8 Ohm

Minimum impedance

7.2 ohm

Power capacity

1000 W AES

Program power

2000 W

Sensitivity

98 dB 1 W/1 m @ ZN

Frequency range

35-1000 Hz

Voice coil diameter

88.9 mm 3.5 in

BL factor

23.8 N/A

Moving mass

0.196 kg

Winding length

27 mm

Air gap height

12 mm

Xdamage pp

51 mm





THIELE SMALL PARAMETERS



Fs

34 Hz

Re

5.4 ohm

Qms

7.3

Qes

0.39

Qts

0.38

Vas

250 l

Cms

111 µm / N

Rms

5.7 kg / s

Efficiency %

2.4

Sd

0.1255 m²

Xmax

11 mm

Vd

1380 cm³

Le @1 kHz

1.9 mH

CONSTRUCTIVE DETAILS



Depth

224 mm 8.8 in

Net weight

11.7 kg 25.7 lb

Total weight

13 kg 28.6 lb

Magnet

Ferrite



TECHNOLOGIES

MALT CROSS
