difuzor Beyma 18LEX1600Nd

Acasa/Difuzoare/18 inch/difuzor Beyma 18LEX1600Nd

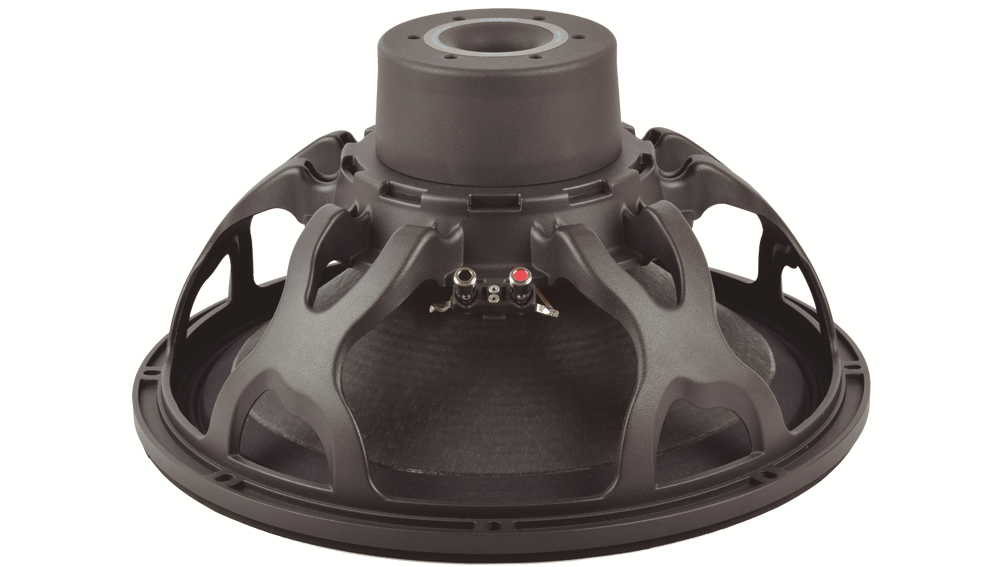

difuzor Beyma 18LEX1600Nd

In Stock

333,90  + TVA

putere :
1600 /3200 W
sensibilitate :
96 dB / 1W /1m
domeniu de frecvenţă :
35-1000Hz
impedanţă :
8 ohmi
frecvenţă rezonanţă :
33 hz

TECHNICAL SPECIFICATIONS



Nominal diameter

460 mm 18 in

Nominal impedance

8 Ohm

Minimum impedance

7 ohm

Power capacity

1600 W AES

Program power

3200 W

Sensitivity

96 dB 1 W/1 m @ ZN

Frequency range

35-1000 Hz

Voice coil diameter

101.6 mm 4 in

BL factor

24.5 N/A

Moving mass

0.229 kg

Winding length

35 mm

Air gap height

14 mm

Xdamage pp

65 mm



THIELE SMALL PARAMETERS



Fs

33 Hz

Re

5.8 ohm

Qms

11.4

Qes

0.45

Qts

0.43

Vas

231 l

Cms

104 µm / N

Rms

4.1 kg / s

Efficiency %

1.7

Sd

0.1255 m²

Xmax

14.5 mm

Vd

1820 cm³

Le @1 kHz

1.9 mH

CONSTRUCTIVE DETAILS



Depth

236 mm 9.3 in

Net weight

9.5 kg 20.9 lb

Total weight

10.8 kg 23.8 lb

Magnet

Neodymium



TECHNOLOGIES

MALT CROSS

MMSS
