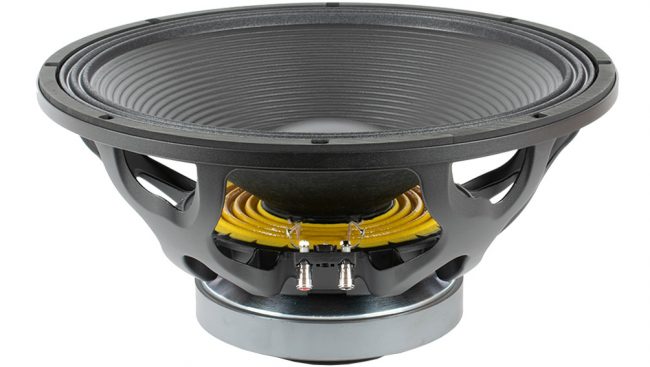

difuzor Beyma 18QLEX1600Fe

Acasa/Difuzoare/18 inch/difuzor Beyma 18QLEX1600Fe
Nou

difuzor Beyma 18QLEX1600Fe

In Stock

304,95  + TVA

putere:
1600W AES,
sensibilitate:
97 dB/1W/1M,
domeniu de frecvenţă:
30-1000Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
30Hz,
preţ kit reparaţii:
—— Euro+TVA

TECHNICAL SPECIFICATIONS



Nominal diameter

460 mm 18 in

Nominal impedance

8 Ohm

Minimum impedance

6.3 ohm

Power capacity

1600 W AES

Program power

3200 W

Sensitivity

97 dB 1 W/1 m @ ZN

Frequency range

30-1000 Hz

Voice coil diameter

101.6 mm 4 in

BL factor

36.4 N/A

Moving mass

0.323 kg

Winding length

32 mm

Air gap height

15 mm

Xdamage pp

60 mm



THIELE SMALL PARAMETERS



Fs

30 Hz

Re

5.3 ohm

Qms

6.5

Qes

0.24

Qts

0.23

Vas

195 l

Cms

88 µm / N

Rms

9.3 kg / s

Efficiency %

2.1

Sd

0.1255 m²

Xmax

13 mm

Vd

1631 cm³

Le @1 kHz

3.9 mH

CONSTRUCTIVE DETAILS



Depth

233 mm 9.2 in

Net weight

14.6 kg 32.1 lb

Total weight

15.9 kg 35 lb

Magnet

Ferrite



TECHNOLOGIES

MALT CROSS
