difuzor Beyma 18PWB1000Fe

Acasa/Difuzoare/18 inch/difuzor Beyma 18PWB1000Fe

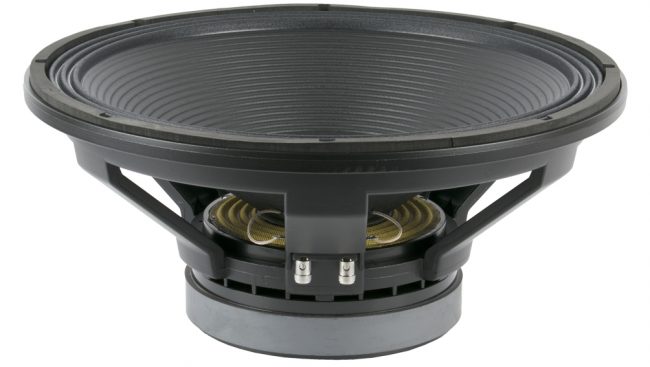

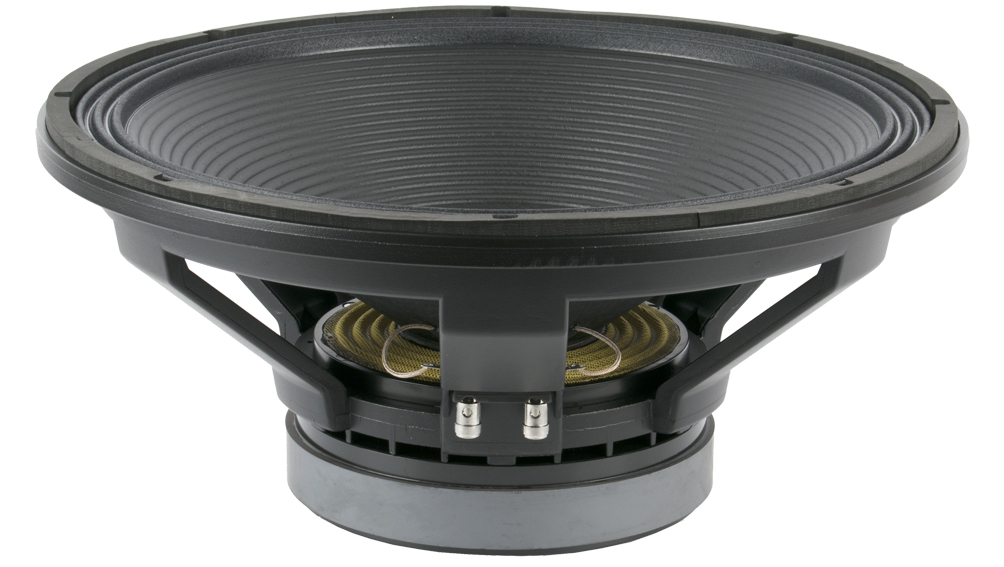

difuzor Beyma 18PWB1000Fe

In Stock

222,90  + TVA

putere :
1000W AES
sensibilitate :
96dB @ 2.83V @ 1m
domeniu de frecvenţă :
30 – 2000 Hz
impedanţă :
8 ohm
frecvenţă rezonanţă :
27 Hz !
preţ kit reparaţii :
90,90 euro+tva

TECHNICAL SPECIFICATIONS



Nominal diameter

460 mm 18 in

Nominal impedance

8 Ohm

Minimum impedance

6.8 ohm

Power capacity

1000 W AES

Program power

2000 W

Sensitivity

96 dB @ 1 W @ ZN

Frequency range

30-2000 Hz

Recommended enclosure volume

180 / 250 l 6.5 / 9 ft.³

Voice coil diameter

101.6 mm 4 in

BL factor

25 N/A

Moving mass

0.245 kg

Winding length

30 mm

Air gap height

12 mm

Xdamage pp

55 mm

THIELE SMALL PARAMETERS



Fs

27 Hz

Re

6 ohm

Qms

8.2

Qes

0.4

Qts

0.38

Vas

317 l

Cms

142 µm / N

Rms

5.1 kg/s

Efficiency %

1.5

Sd

0.1255 m²

Xmax

12.5 mm

Vd

1560 cm³

Le @1 kHz

2 mH

CONSTRUCTIVE DETAILS



Depth

215 mm 8.4 in

Net weight

13.6 kg 30 lb

Total weight

15.1 kg 33.9 lb

Magnet

Ferrite
