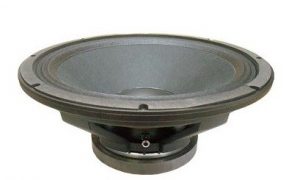

difuzor Beyma 18LX60 V2

Acasa/Difuzoare/18 inch/difuzor Beyma 18LX60 V2

difuzor Beyma 18LX60 V2

In Stock

197,90  + TVA

putere :
700 @ 1400 W
sensibilitate :
98 dB @ 1w @ 1m
domeniu de frecvenţă :
25 @ 2000 Hz
impedanţă :
8 ohmi
preţ kit reparaţii :
18LX60V2: 81,90 euro+tva
frecvenţă rezonanţă :
35 hz

TECHNICAL SPECIFICATIONS



Nominal diameter

460 mm 18 in

Nominal impedance

8 Ohm

Minimum impedance

6.4 ohm

Power capacity

700 W AES

Program power

1400 W

Sensitivity

98 dB 1 W @ 1 m

Frequency range

25-1000 Hz

Recommended enclosure volume

80 / 250 l / 2.8 / 8.8 ft³

Voice coil diameter

100 mm 4 in

BL factor

21.8 N / A

Moving mass

0.215 kg

Winding length

20 mm

Air gap height

10 mm

Xdamage pp

58 mm

THIELE SMALL PARAMETERS



Fs

35 Hz

Re

5.1 ohm

Qms

15.72

Qes

0.5

Qts

0.48

Vas

236.52 l

Cms

94.5 µm / N

Rms

3.04 kg / s

Efficiency %

1.91

Sd

0.1320 m²

Xmax

9 mm

Vd

1178 cm³

Le @1 kHz

2.1 mH

CONSTRUCTIVE DETAILS



Depth

198 mm 7.79 in

Net weight

11.7 kg 25.7 lb

Total weight

13.2 kg 29.04 lb

Magnet

Ferrite
