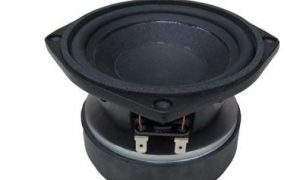

difuzor Beyma 5P200Nd

Acasa/Difuzoare/5 inch/difuzor Beyma 5P200Nd

difuzor Beyma 5P200Nd

In Stock

79,90  + TVA

putere : 150 / 300W AES
sensibilitate : 92 dB /1w/1m
domeniu de frecvenţă : 70 – 10000 Hz
impedanţă : 8 ohmi
frecvenţă rezonanţă : 78 Hz
preţ kit reparaţii : 43,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 127 mm 5 in
Nominal impedance 8 Ohm
Minimum impedance 6.7 ohm
Power capacity 150 W AES
Program power 300 W
Sensitivity 92 dB 1 W @ 1 m
Frequency range 70-10000 Hz
Voice coil diameter 38 mm 1.5 in
BL factor 9.9 N/A
Moving mass 0.011 Kg
Winding length 14 mm
Air gap height 6 mm

THIELE SMALL PARAMETERS



Fs 78 Hz
Re 5.3 ohm
Qms 10.7
Qes 0.31
Qts 0.3
Vas 4.5 l
Cms 355 µm / N
Rms 0.5 kg/s
Efficiency % 0.68
Sd 0.0095 m²
Xmax 5.7 mm
Vd 54.15 cm³
Le @1 kHz 0.25 mH

CONSTRUCTIVE DETAILS



Depth 71 mm 2.79 in
Net weight 1.24kg 2.73 lb
Magnet Neodymium
