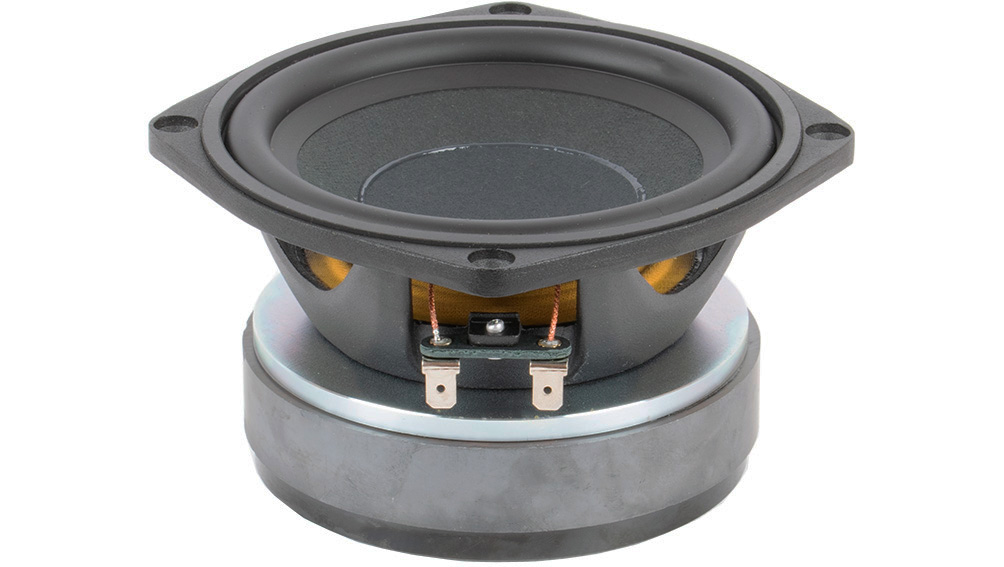

difuzor Beyma 5P200Fe

Acasa/Difuzoare/5 inch/difuzor Beyma 5P200Fe

difuzor Beyma 5P200Fe

In Stock

51,90  + TVA

putere : 150 / 300W AES
sensibilitate : 92 dB /1w/1m
domeniu de frecvenţă : 70 – 10000 Hz
impedanţă : 8 ohmi
frecvenţă rezonanţă : 72 Hz
preţ kit reparaţii : 43,90 Euro + TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 127 mm 5 in
Nominal impedance 8 Ohm
Minimum impedance 6.7 ohm
Power capacity 150 W AES
Program power 300 W
Sensitivity 92 dB 1 W @ 1m @ 2Π
Frequency range 70-10000 Hz
Recommended enclosure volume 4 / 10 l 0.14 / 0.75 ft.³
Voice coil diameter 38 mm 1.5 in
BL factor 8.5 N / A
Moving mass 0.01 kg
Winding length 14 mm
Air gap height 6 mm
Xdamage pp 16 mm

THIELE SMALL PARAMETERS



Fs 72 Hz
Re 5.2 ohm
Qms 7.5
Qes 0.35
Qts 0.33
Vas 5.69 l
Cms 451 µm/N
Rms 0.65 kg /s
Efficiency % 0.58
Sd 0.0095 m²
Xmax 5.5 mm
Vd 49 cm³
Le @1 kHz 0.6 mH

CONSTRUCTIVE DETAILS



Net weight 2.19 kg 4.83 lb
Total weight 2.47 kg 5.45 lb
Magnet Ferrite
