difuzor Beyma 8WR300

Acasa/Difuzoare/8 inch/difuzor Beyma 8WR300

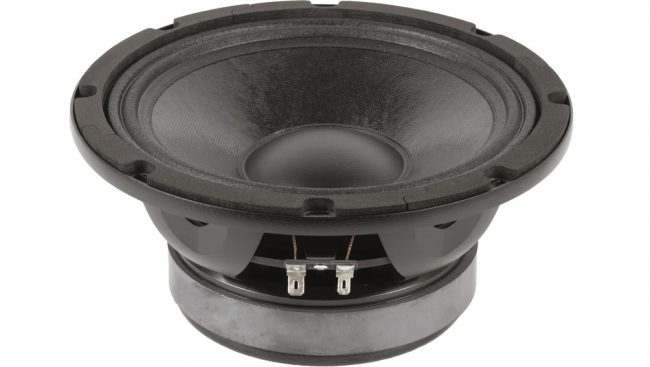

beyma-speakers-product-picture-low-mid-frequency-8WR300

difuzor Beyma 8WR300

In Stock

81,95  + TVA



putere:
300W AES,
sensibilitate:
95 dB/1W/1M,
domeniu de frecvenţă:
65-4000Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
65 Hz,
preţ kit reparaţii:
41,95 Euro+TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 200 mm 8 in
Nominal impedance 8 Ohm
Minimum impedance 7.6 ohm
Power capacity 300 W AES
Program power 600 W
Sensitivity 95 dB 1 W/1 m @ ZN
Frequency range 65-4000 Hz
Voice coil diameter 50.8 mm 2 in
BL factor 15.1 N/A
Moving mass 0.026 kg
Winding length 15 mm
Air gap height 8 mm
Xdamage pp 32 mm

THIELE SMALL PARAMETERS



Fs 62 Hz
Re 5.9 ohm
Qms 2.4
Qes 0.26
Qts 0.24
Vas 17.7 l
Cms 251 µm / N
Rms 4.2 kg/s
Efficiency % 1.5
Sd 0.022 m²
Xmax 6 mm
Vd 132 cm³
Le @1 kHz 0.9 mH

CONSTRUCTIVE DETAILS



Depth 95 mm 3.74 in
Net weight 3.3 kg 7.26 lb
Total weight 3.6 kg 7.92 lb
Magnet Ferrite
