difuzor Beyma 8P300Fe N

Acasa/Difuzoare/8 inch/difuzor Beyma 8P300Fe N

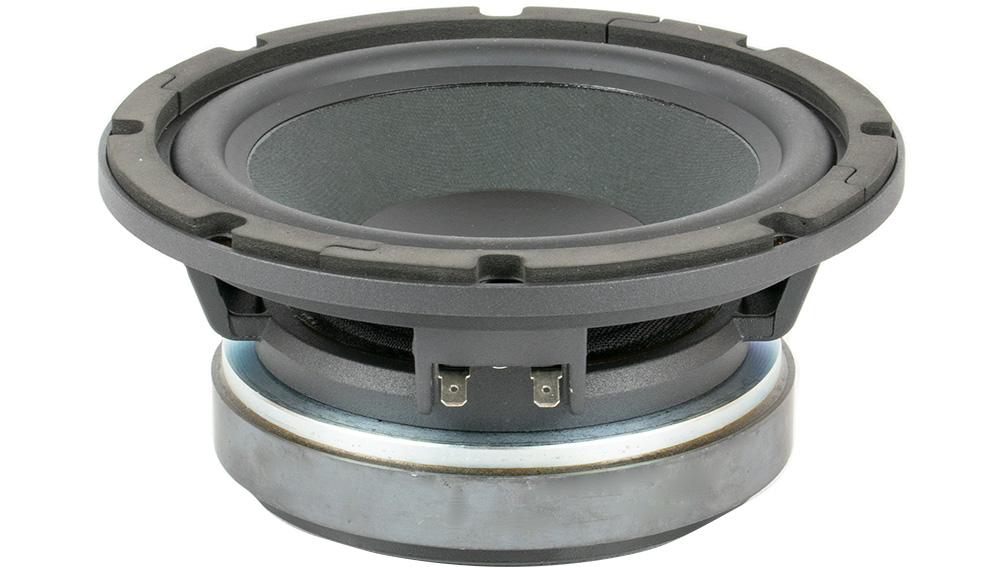

difuzor Beyma 8P300Fe N

In Stock

93,95  + TVA



putere:
300W AES,
sensibilitate:
94 dB/1W/1M,
domeniu de frecvenţă:
55-8000Hz,
impedanţă:
8 ohm,
frecvenţă rezonanţă:
53 Hz,
preţ kit reparaţii:
56,95 Euro+TVA



TECHNICAL SPECIFICATIONS



Nominal diameter 200 mm 8 in
Nominal impedance 8 Ohm
Minimum impedance 6.7 ohm
Power capacity 300 W AES
Program power 600 W
Sensitivity 94 dB @ 1 W @ ZN
Frequency range 55-8000 Hz
Recommended enclosure volume 10 / 30 l 0.35 / 1.06 ft.³
Voice coil diameter 63.5 mm 2.5 in
BL factor 11.6 N /A
Moving mass 0.025 kg
Winding length 15 mm
Air gap height 7 mm
Xdamage pp 24 mm

THIELE SMALL PARAMETERS



Fs 53 Hz
Re 5.2 ohm
Qms 14.3
Qes 0.32
Qts 0.31
Vas 24.8 l
Cms 362 µm / N
Rms 0.58 kg/s
Efficiency % 1.1
Sd 0.022 m²
Xmax 6 mm
Vd 132 cm³
Le @1 kHz 0.4 mH

CONSTRUCTIVE DETAILS



Depth 97.5 mm 3.84 in
Net weight 4 kg 8.82 lb
Total weight 4.25 kg 9.35 lb
Magnet Ferrite
