difuzor coaxial Beyma, 15CXA400Fe

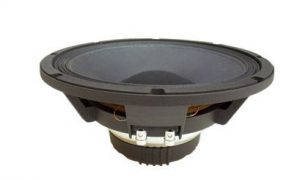

difuzor coaxial Beyma, 12XA30Nd
<span class="woocommerce-Price-amount amount"><bdi>412,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
difuzor coaxial Beyma, 15CXA400Nd
<span class="woocommerce-Price-amount amount"><bdi>467,95 <span class="woocommerce-Price-currencySymbol">€</span></bdi></span> + TVA
In Stock
324,95 € + TVA
| putere (LF/HF): | 400/80W RMS, |
| sensibilitate(LF/HF): | 98/105 dB/1W/1M, |
| domeniu de frecvenţă: | 35-20000 Hz, |
| impedanţă(LF/HF): | 8/16 ohm, |
| frecvenţă rezonanţă: | 40 Hz, |
| preţ kit reparaţii: | 91,95 Euro+TVA |
TECHNICAL SPECIFICATIONS
Nominal impedance LF/HF
8/16 ohm
HF diaphragm ref.
5MCP756
LF Recone kit ref.
5M15CXA4ND8
Nominal diameter
350 mm 15 in
Minimum impedance LF/HF
6.3/11.3 ohm
Frequency range
35-20000 Hz
Power capacity LF/HF
400/80 W AES
Program power LF/HF
800/180 w
Sensitivity LF/HF
98/105 2.83 @ 1 m @ 2π
Recom. crossover frequency
1.5 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF
100/72 mm – 4 /2.9 in
Dispersion (conical)
60º
BL factor
18.2 N/A
Moving mass
0.090 kg
Winding length
16 mm
Xdamage pp
51 mm
PARAMETERS THIELE & SMALL
Fs
40 Hz
Re
6.3 ohm
Qms
16.4
Qes
0.43
Qts
0.42
Vas
191 l
Cms
175 µm / N
Rms
1.38 kg/s
Efficiency %
2.75
Sd
0.088 m²
Xmax
6 mm
Vd
350 cm³
Le @1 kHz
0.95 mH
CONSTRUCTION DETAILS
Net weight
11.9 kg 26.26 lb
Total weight
12.4 kg 27.3 lb
Magnet
Ferrite
