difuzor MasterAudio PA 12/4

Acasa/Difuzoare/12 inch/difuzor MasterAudio PA 12/4
Nou
PA12-4

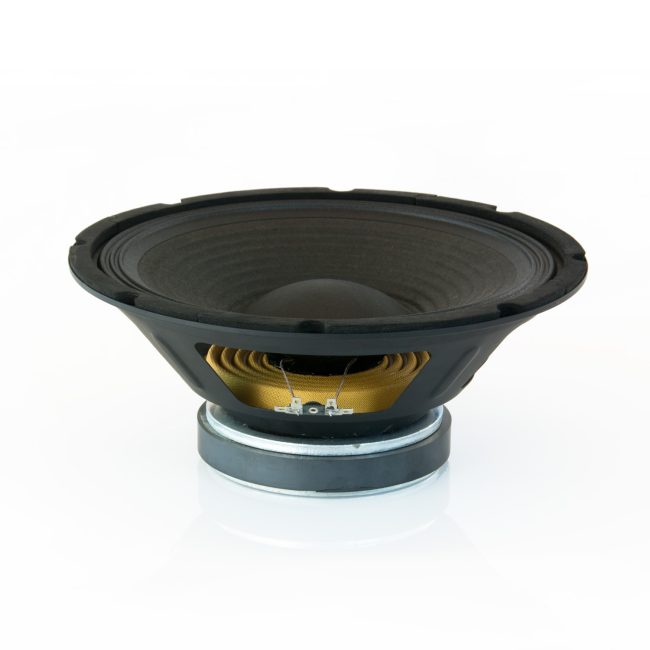

difuzor MasterAudio PA 12/4

In Stock

43,95  + TVA

putere:
220W AES
sensibilitate:
95 dB /1W/ 1M
domeniu de frecvenţă:
55-5000 Hz
impedanţă:
4 Ohm
frecvenţă rezonanţă:
45 Hz
diametru bobină:
65 mm
Descărcări:PA12_4-Masteraudio

SPECIFICATIONS

Nominal Impedance 4 Ohm
RMS Power 220 W
MAX Power 440 W
Sensitivity (1W/1m) 95 dB
Frequency Range 55-5000 Hz
Voice Coil Diameter 65 mm
Magnet Ferrite
Magnet weight 50 oz
Basket Material Steel

THIELE AND SMALL PARAMETERS

Fs 45 Hz
Re 3.6 Ohm
Qes 0.6
Qms 10
Qts 0.58
Vas 82 l
Sd 500 cm²
Xmax 5 mm
Mms 58 gr
Bl 12 Txm
Le 35 mH
EBP 75 Hz

MOUNTING INFORMATION

Overall Diameter 311 mm (12″)
Bolt Circle Diameter 295 mm
Baffle cutout Diameter 288 mm
Depth 128 mm
Mounting Depth 118 mm
Net Weight 3.7 Kg
