difuzor MasterAudio PA 15/4

Acasa/Difuzoare/15 inch/difuzor MasterAudio PA 15/4
Nou
PA15-4

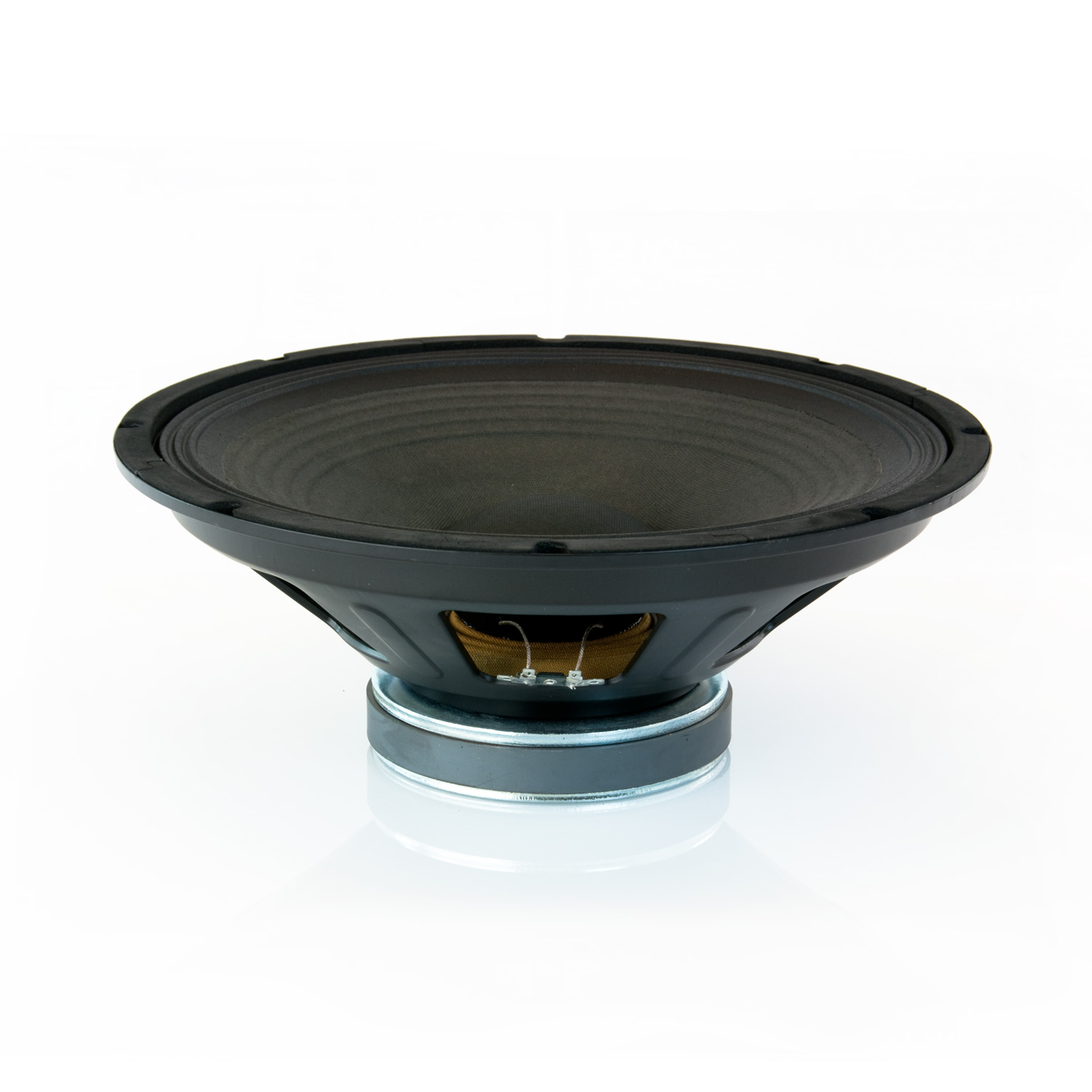

difuzor MasterAudio PA 15/4

In Stock

56,95  + TVA

putere:
280 W AES
sensibilitate:
97 dB /1W/1M
domeniu de frecvenţă:
40-4000 Hz
impedanţă:
4 Ohm
frecvenţă rezonanţă:
55 Hz
diametru bobină:
75 mm
Descărcări:PA15_4-Masteraudio

SPECIFICATIONS

Nominal Impedance 4 Ohm
RMS Power 280 W
MAX Power 560 W
Sensitivity (1W/1m) 97 dB
Frequency Range 40-4000 Hz
Voice Coil Diameter 75 mm
Magnet Ferrite
Magnet weight 77 oz
Basket Material Steel

THIELE AND SMALL PARAMETERS

Fs 55 Hz
Re 3.6 Ohm
Qes 0.53
Qms 18
Qts 0.52
Vas 181 l
Sd 800 cm²
Xmax 4.5 mm
Mms 86 gr
Bl 15 Txm
Le 46 mH
EBP 75 Hz

MOUNTING INFORMATION

Overall Diameter 388 mm (15″)
Bolt Circle Diameter 375 mm
Baffle cutout Diameter 358 mm
Depth 152 mm
Mounting Depth 142 mm
Net Weight 5.2 Kg
