driver Beyma CD-11Nd

Acasa/Difuzoare/înalte/driver Beyma CD-11Nd
Nou

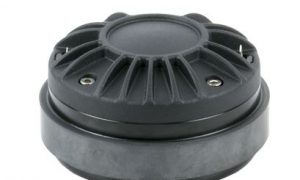

driver Beyma CD-11Nd

In Stock

163,00  + TVA

putere : 70W AES peste 1,2 kHz; 140W peste 1,2 kHz
sensibilitate : 111 dB @ 2,83 V @ 1 m
domeniu de frecvenţă : 0,7 – 19 kHz

CD-11Nd

TECHNICAL SPECIFICATIONS



Throat diameter

25.4 mm 1 in

Nominal impedance

8 Ohm

Minimum impedance

5.8 ohm

Re

4.4 ohm

Power capacity

70 W AES above 1.2 kHz

Program power

140 W above 1.2 kHz

Sensitivity

111 dB 1 W @ 1 m coupled to horn TD-164

Frequency range

700-19000 Hz

Voice coil diameter

44.4 mm 1.75 in

Flux density

2 T

Diaphragm material

PM4

CONSTRUCTIVE DETAILS



External diameter

100 mm 3.9 in

Depth

47 mm 1.9 in

Mounting

Three M5 threaded holes. 120º apart on

57 mm (2.24 in) diameter circle.

Two M5 threaded holes. 180º apart on

76.2 mm (3 in) diameter circle.

Net weight

1.3 kg 2.93 lb

Total weight

1.4 kg 3.1 lb

Magnet

Neodymium

TECHNOLOGIES

PM4
